In modern manufacturing and scientific research, accurate and efficient measurement tools are the key to ensure product quality and promote technological innovation. 3D profilometer, as an outstanding representative of high-precision measurement technology, is leading the new trend of measurement and analysis with its unique advantages.

What is a 3D Profiler?

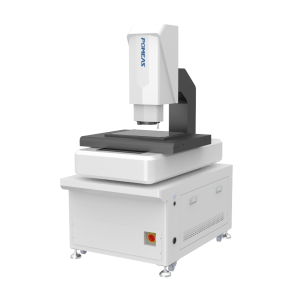

3D Profiler is an advanced non-contact measuring device that utilizes advanced technologies such as optics or lasers to quickly capture and reconstruct the three-dimensional form of an object's surface. This technology not only avoids the damage that traditional contact measurement may cause to the product, but also greatly improves the accuracy and speed of measurement, making it an indispensable tool for modern precision measurement.

Core strengths:

High-precision non-contact measurement: 3D Profiler realizes high-precision measurement through non-contact method, which not only protects the object to be measured from damage, but also avoids errors introduced by friction, pressure and other factors in contact measurement, ensuring the accuracy and reliability of measurement results.


High-speed scanning: With its advanced optical or laser scanning technology, the 3D Profiler is able to scan the entire surface of an object in a very short period of time (as fast as 4 seconds) and instantly generate a detailed dimensional report. This high-speed scanning capability greatly enhances work efficiency and makes large-scale, efficient measurements possible.


Powerful Data Analysis: The 3D Profiler has a variety of built-in advanced analysis functions, including 2D point fitting, 3D contour analysis, 3D cross-section analysis, and 3D assisted verification. These functions enable users to easily process and analyze complex 3D data, providing strong support for product design, quality control and process improvement.

Product Applications:

Dimensional Measurement: 3D Profilometer is able to quickly and accurately obtain 2D and 3D dimensional reports of the workpieces to be measured, especially for large-sized and complex shaped workpieces with significant advantages. This feature makes it widely used in aerospace, automotive manufacturing, precision machinery and other fields, providing a strong guarantee for product quality control.


Reverse engineering: By scanning the sample to be measured and generating its 3D model, 3D Profiler provides powerful technical support for reverse engineering. Combined with rapid prototyping technology, engineers can quickly produce prototype samples to verify and optimize the design, thus greatly shortening the product development cycle and reducing development costs.


Defect analysis: 3D Profilometer can accurately compare the actual measurement data of the workpiece with the design data, and quickly locate and identify the defective parts. This not only helps to correct problems in product design and production processes, but also effectively prevents quality problems or safety accidents caused by defects.

With the advantages of high accuracy, non-contact measurement, high-speed scanning and powerful data analysis capability, 3D Profilometer has shown great application potential and value in manufacturing and scientific research fields. With the continuous progress of technology and the expansion of applications, it is believed that 3D profilometer will play an important role in more fields and promote the continuous development and innovation of related industries.
