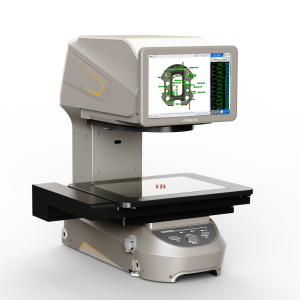

Flash Meter Overview

The flash meter, also known as “one-button flash meter”, “one-button image measuring instrument” or “one-button optical measuring instrument”, is a new type of image image measurement technology for precision measurement of It is a precision measuring instrument that utilizes a new image measuring technology. It is mainly through the high-resolution optical lens combined with high-precision image analysis algorithms, to achieve fast, accurate, batch of two-dimensional flat size measurement. Under the CNC mode, the operator only needs to press the start button, and the instrument can automatically complete a series of operations such as positioning, matching, measuring and report generation, which greatly improves the measuring efficiency.

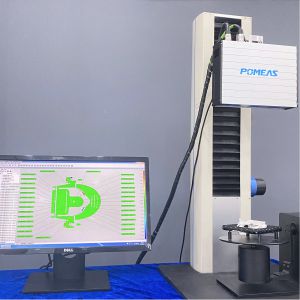

3D Profiler Overview

3D Profiler is a kind of analytical instrument used in the field of physics, which is mainly used for the accurate measurement and analysis of the three-dimensional contour of the object surface. It uses optical or laser scanning technology to obtain the three-dimensional data of the object surface in a non-contact way, and analyzes and reconstructs the data through the built-in data processing software, so as to obtain the three-dimensional contour model of the object surface.3D Profiler has a wide range of applications in the fields of dimensional measurements, reverse engineering, and defect analysis.

Common Ground

1、The purpose of measurement: both are used to measure the size of the product, to ensure product quality tools.

2、Measuring method: both use non-contact measurement, avoiding the traditional contact measurement may cause damage to the product.

3、Measurement accuracy: both have the ability to measure with high precision, to meet the strict requirements of different areas of measurement accuracy.

Points of difference

1、Measurement of dimensions:

① Flash meter: mainly used for the measurement of two-dimensional plane dimensions, such as length, width, diameter and so on.

② 3D Profiler: mainly used for three-dimensional profile scanning and measurement, able to obtain three-dimensional morphology data on the surface of the object.

2、Application areas:

① Flash Meter: Widely used in machinery, electronics, molds, injection molding, hardware, rubber, low-voltage electrical appliances, magnetic materials, precision stamping, connectors, connectors, terminals, cell phones, home appliances, printed circuit boards, medical equipment, clocks and watches, cutting tools, etc., especially suitable for scenarios that require rapid batch measurement.

② 3D Profiler: It has a wide range of applications in the fields of dimensional measurement, reverse engineering, and defect analysis. For example, in reverse engineering, the 3D model of the sample to be measured can be quickly obtained for product design and improvement; in defect analysis, by comparing with the design data, the defective parts can be quickly located and corrected.

3、Measuring principle and technology:

① Flash Meter: Through the high-resolution optical lens and high-precision image analysis algorithm, it can realize one-button fast and accurate measurement.

② 3D Profiler: Using optical or laser scanning technology, obtain the three-dimensional data of the object surface in a non-contact way, and analyze and reconstruct the data.

Flash and 3D profilers are similar in terms of measurement purpose, measurement mode and measurement accuracy, but there are significant differences in measurement dimensions, application areas, and measurement principles and technologies. Users should make comprehensive considerations based on specific needs and application scenarios when choosing.
