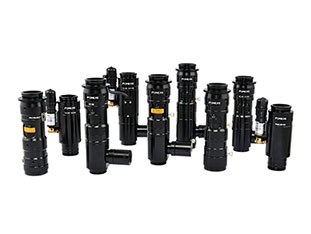

Double mode analysis of zoom method

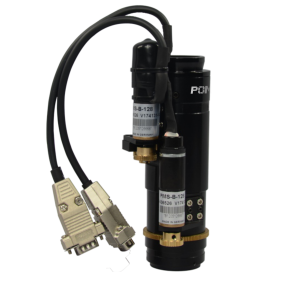

■ Motorized zoom (intelligent operation)

• One-touch remote control of varifocal range

• Equipped with 0-12mm motorized fine adjustment system (accuracy of ±0.01mm)

• Supports automation device integration, programmable control

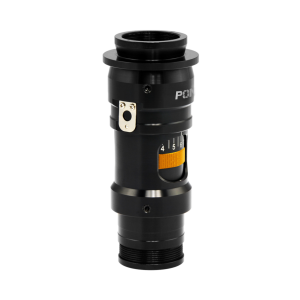

■ Manual zoom (precision control)

• Physical knob mechanical adjustment

• Precision adjustment for laboratory environments

• Contingency program without power dependency

Principle of 12.5X zoom lens：

The focal length of the entire objective lens is changed by changing the interval between the lens groups. When the lens is moved to change the focal length, it is always accompanied by the movement of the image plane, and this should be compensated for the movement of the image plane. The zoom lens is mechanically compensated, and the compensation curve is calculated according to the numerical relationship between the displacement of the zoom group and the compensation group, so as to design a cam mechanism to compensate for the movement of the image plane. By rotating the lens barrel with the cam curve groove, the goal of continuous zoom and constant image plane position is realized.

12.5X zoom lens application:

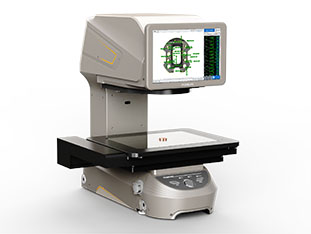

Because of its unique advantages, it is commonly used in measuring equipment, such as image meters, flash meters, and contour measuring instruments;

Can also be used in the measurement program, with high-definition industrial cameras, vision inspection light source and other optical devices to form a vision inspection program, can be applied to the semiconductor observation, electronic parts observation and so on.
