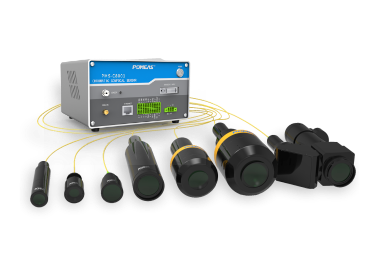

In pharmaceutical production lines, the classification and sorting of pill shapes are critical steps to ensure the proper functioning of subsequent packaging and dispensing equipment. Irregularly shaped pills, such as oval or capsule-shaped ones, must be strictly categorized by shape; otherwise, issues like misaligned packaging or inaccurate dosing may occur. The Spectral Confocal Displacement Sensor SFS series, leveraging advanced 3D reconstruction technology, has become an indispensable tool for pill shape classification and sorting.

I. 3D Reconstruction Technology: Precisely Capturing Pill Shape Characteristics

The SFS series sensors rapidly capture three-dimensional contour information of pill surfaces by emitting light of specific spectral characteristics. Leveraging the focusing properties of light at different wavelengths, this data is processed by the sensor's built-in system into precise 3D models. These models clearly reveal pill shape characteristics such as the ratio of major to minor axes and curvature values. Based on this precise data, the sensor rapidly identifies pills of varying shapes and issues corresponding control signals to achieve automated classification and sorting. For instance, elliptical pills and capsule-shaped pills exhibit distinct differences in contour curves and dimensional proportions within their 3D models. The SFS series sensor accurately captures these variations, ensuring error-free classification.

II. Three Core Advantages: High Speed, Flexibility, Automation

• High Speed: This is one of its core competitive advantages. Combined with advanced machine vision algorithms, it can classify hundreds of pills per second based on shape, perfectly matching the high-speed production line rhythm of pharmaceutical manufacturing. This prevents production delays caused by insufficient inspection speed.

• Flexibility: The sensor supports custom shape templates, allowing operators to pre-set various shape parameters according to different pill design requirements. Whether it's common oval or capsule shapes, or specially customized irregular pills, precise recognition is achieved, significantly enhancing the equipment's adaptability to diverse production demands.

• Reducing Manual Intervention: Traditional manual sorting is not only inefficient but also prone to human error due to fatigue and subjective judgment biases. The automated sorting capabilities of the SFS series sensors fundamentally resolve these issues, enhancing production efficiency while ensuring classification accuracy.

III. Tailored for the Pharmaceutical Industry: Multiple Features Meet Stringent Requirements

• Non-contact measurement: This method avoids direct contact between the sensor and the pill, eliminating contamination risks at the source and fully meeting the stringent environmental requirements of cleanrooms.

• Multi-material Adaptability: Its capabilities enable it to handle inspections of various materials, from transparent-coated pills to opaque cores. Whether the pill surface is smooth or features fine textures, it achieves high-precision shape recognition.

• High-speed and automation: These characteristics align perfectly with the pharmaceutical industry's stringent demands for production efficiency and quality control, providing a solid foundation for large-scale manufacturing.

• Data-Driven Optimization: By continuously accumulating three-dimensional data on pill shapes, we can also provide data support for production process improvements and product iterations, driving pharmaceutical manufacturing toward greater precision and efficiency.
