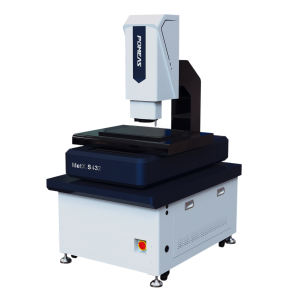

The MetX Series fully automatic image measuring machines redefine precision measurement with five core strengths: simplicity, speed, stability, accuracy, and intelligence. They deliver efficient and reliable measurement solutions for electronics, machining, automotive, and other industries, effortlessly tackling complex measurement challenges.

Simple to operate, even beginners can get started quickly.

The MetX series features an OS/APP architecture software system with a modular functional design for intuitive operation. Multiple measurement apps can be flexibly switched, enabling setup without complex training. For batch production of identical products, it supports one-time programming with repeatable recall. Combined with a clear visual interface and a large 21.5-inch display, this significantly lowers the operational threshold. A single operator can easily manage the system, substantially reducing labor costs.

Fast measurement speeds, doubled efficiency—no waiting required.

The equipment is equipped with high-performance CNC servo motors and P-grade precision cross-roller guides, achieving maximum traverse speeds of 300 mm/s on the XY axes and 200 mm/s on the Z axis for efficient measurement positioning. It further incorporates multi-sensor, multi-axis continuous rapid scanning technology, supporting 3-axis simultaneous non-stop point cloud scanning. Combined with adaptive acquisition capabilities, this significantly reduces measurement cycles. The grid batch measurement mode enables automatic continuous inspection of multiple products, completely eliminating the inefficiencies of traditional measurement methods.

Measurement results remain stable, ensuring consistent precision over extended operation.

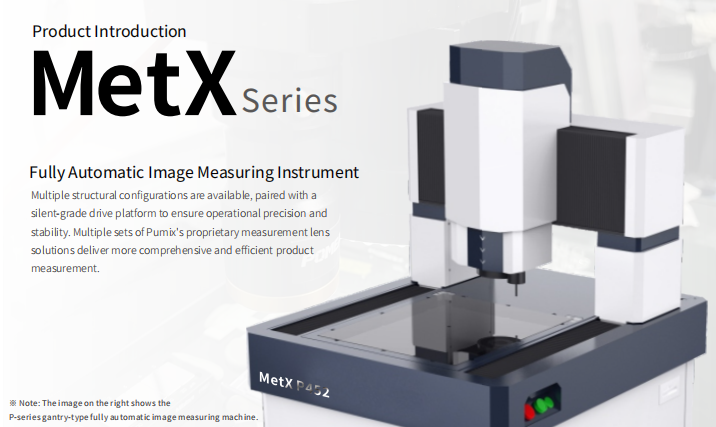

The MetX series features a high-rigidity body structure, with premium S-series models equipped with marble bases and a silent-grade drive platform to ensure smooth, interference-free operation. The equipment supports multiple compensation technologies, including 21 error compensation functions and multi-layer spatial surface compensation, precisely counteracting environmental and mechanical errors. Combined with a programmable multi-light source system, it delivers tailored illumination solutions for diverse workpiece materials, guaranteeing consistent and stable measurement data even under complex conditions.

Accurate measurements, precise capture of minute dimensions.

Leveraging POMEAS's proprietary high-resolution lenses and high-definition CCD cameras, combined with spectral confocal measurement technology, measurement accuracy reaches ±2μm. XY-axis precision achieves up to 2.5+L/200μm, while Z-axis repeatability delivers precise and reliable performance. Powerful surface algorithms enable fully automated edge detection and precise element fitting, accurately measuring various parameters including 2D/3D dimensions, shape tolerances, and line/surface profile. Stable measurement is achievable even for workpieces made of special materials such as metal and glass.

Intelligent measurement systems empower efficient production.

The MetX series features a built-in intelligent vision system that supports multi-image stitching and preprocessing, enabling automatic recognition of workpiece features and precise positioning to minimize manual intervention errors. The software supports world coordinate system benchmark measurement, automatic product data acquisition, and 2D/3D contour ratio comparison analysis. It also generates detailed inspection reports with data directly exportable for reuse. Optional sensors like probes and line lasers enable multi-sensor integration, adaptively handling irregular product measurements for smarter, more comprehensive inspection.

From simple operation to intelligent efficiency, from precise measurement to stable output, the MetX series of fully automatic image measuring instruments leverages its comprehensive core advantages to become a reliable partner for enterprises seeking to enhance product quality and optimize production efficiency, driving precision manufacturing upgrades across the industry.
