In demanding applications such as high-precision dimensional measurement, the detection of minute defects and the inspection of irregularly shaped workpieces, standard industrial lenses are limited by issues such as perspective distortion, insufficient depth of field and limited imaging accuracy, and are therefore unable to meet the requirements of high-precision quality control in mass production. As a core category of high-end industrial telecentric lenses, long-barrel lenses effectively address the challenges of traditional vision inspection through their superior optical performance and are widely used in a variety of high-precision industrial inspection applications.

I. What is a ‘cannon barrel’ lens?

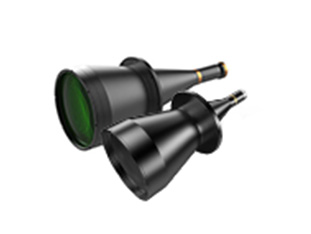

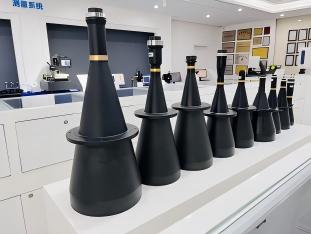

The term ‘cannon-barrel lens’ is a common colloquial name used in the industrial vision sector to refer to large-aperture, long-depth-of-field, high-magnification telecentric lenses; it derives its name from the lens’s slender barrel, large optical aperture and longer optical path. Unlike conventional industrial fixed-focus and Vari-focal lenses, cannon-barrel lenses employ a specialised parallel-beam telecentric design, which, through optical principles, eliminates the perspective distortion inherent in traditional lenses.

Developed specifically for high-precision, non-contact industrial measurement and microscopic defect detection applications, ‘cannon-barrel’ lenses offer optical characteristics such as stable magnification, extremely low distortion and a wide depth of field. As indispensable core imaging components in high-end machine vision inspection systems, they are primarily used in conjunction with high-precision cameras and industrial lighting to deliver high-precision vision inspection solutions.

II. Key Features of the ‘Big Barrel’ Lens

Barrel lenses are well-suited to demanding industrial quality inspection scenarios, replacing standard lenses to enable high-precision inspection. This is primarily due to their distinctive optical design and performance advantages, which perfectly meet the quality control requirements of precision manufacturing.

1. No perspective distortion; stable measurement accuracy. Traditional lenses suffer from typical ‘near-large, far-small’ perspective errors; any misalignment in workpiece positioning or variations in height can lead to deviations in image dimensions, rendering them unsuitable for precise measurement. Thanks to their telecentric optical design, barrel lenses maintain a fixed optical magnification throughout the entire field of view, completely eliminating perspective distortion. Position shifts and height variations of workpieces within reasonable limits do not affect the accuracy of the imaged dimensions; measurement repeatability and stability are exceptional, enabling consistent micrometre-level inspection accuracy.

2. Extremely Large Depth of Field, Suitable for Complex and Irregularly Shaped Workpieces. Conventional industrial lenses have a narrow depth of field and can only guarantee sharp imaging on a single plane; when used with workpieces featuring convex or concave structures, height differences or irregular curved surfaces, problems such as localised blurring and soft edges are highly likely to occur. The ‘big barrel’ lens features an exceptionally large effective depth of field, covering the entire height variation range of the workpiece. It enables clear imaging of the workpiece’s overall contour and surface details across the entire field without the need for repeated refocusing, significantly enhancing its suitability for inspecting irregularly shaped and three-dimensional workpieces.

3. Large-aperture high-definition imaging with high detail reproduction. Thanks to their large-aperture optical structure and high-transmittance specialist lenses, long-barrel lenses admit ample light and deliver excellent imaging resolution, resulting in clear, crisp images with extremely low noise. It can accurately capture minute defects on the workpiece surface, such as fine scratches, cracks, micro-pores, burrs and contamination, meeting the imaging requirements for microscopic precision inspection and effectively preventing missed or false detections of minute flaws.

4. Industrial-grade stability, suitable for mass production scenarios. The lens features a reinforced structural design throughout, with highly stable optical elements and mechanical components, offering excellent resistance to ambient light interference, vibrations and temperature fluctuations. It is suitable for long-term use in high-speed dynamic inspection on production lines; during continuous operation, there is no image drift, magnification shift or loss of accuracy, fully meeting the demands of industrial, high-volume, uninterrupted automated mass production quality inspection.

III. Practical Applications of Barrel Lenses in Visual Inspection

Thanks to their combined advantages of high precision, high stability and strong adaptability, barrel lenses have been widely adopted across the entire precision manufacturing sector, covering core vision applications such as dimensional measurement, defect detection, positioning and sorting.

1. Dimensional inspection of precision mechanical components: Primarily used for high-precision dimensional measurement of precision moulds, gears, screws, precision hardware fittings and mechanical shaft components. It can accurately inspect key parameters such as bore diameter, wall thickness, spacing, contour tolerances and flatness, thereby eliminating assembly faults caused by dimensional deviations in components and ensuring the machining consistency and yield rate of precision mechanical components.

2. Defect Detection in Plastics and Injection-Moulded Products: Designed for products such as injection-moulded housings, silicone components and precision plastic structural parts, this system effectively detects production defects including surface material shortages, shrinkage, air bubbles, deformation, flash and scratches. It can also adapt to the imaging challenges posed by translucent plastic materials and uneven surfaces, resolving issues such as blurred images and significant errors associated with standard lenses, thereby supporting automated quality sorting in the plastics manufacturing industry.

3. Precision Inspection of Optoelectronic and Semiconductor Products: Suitable for quality inspection of optoelectronic products such as PCBs, chips, optical glass, protective films and precision display components, it can accurately identify microscopic defects such as circuit misalignment, edge damage, surface blemishes, coating defects and printing deviations, meeting the ultra-high precision and stringent quality inspection standards of the optoelectronic and semiconductor industries.

4. Automated Visual Positioning and Alignment: In automated production line scenarios, long-throw lenses can work in conjunction with vision systems to perform tasks such as precise workpiece positioning, fixture alignment, material correction and intelligent sorting. Particularly for workpieces with significant height differences, irregular structures or irregular shapes, they can consistently produce clear images, providing precise visual data support for equipment motion control, automated assembly and intelligent sorting, thereby enhancing the precision and efficiency of automated production line operations.
