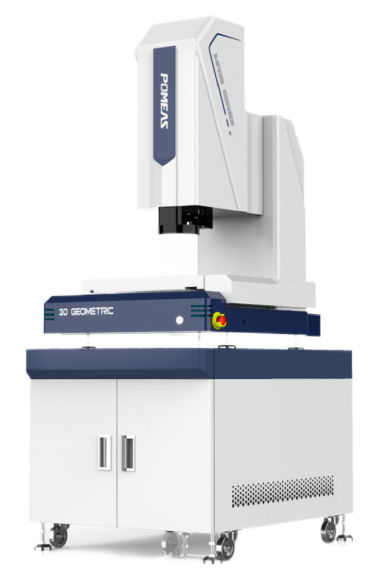

3D Geometric Measurement System S322
Pomeas 3D GMS S322 with cantilevered structure, cast aluminum body and 12.5X zoom measurement module for clearer images and sharper edges on fine products. Equipped with 3DOS vision measurement softw…
Optics General Catalog
Product Feature
1.Cantilevered structure, cast aluminum body, with silent level drive stage, to ensure the operation accuracy and stability of the equipment;
2.Equipped with 12.5X zoom measurement module, for fine products with clearer images and sharper edges;
3. Equipped with self-made point spectrum module as standard, it can measure 3D dimensions of products and realize continuo us scanning and data collection without stopping, which is efficient and convenient;
4. Equipped with 3DOS vision measurement software to meet GD&T geometric tolerance and traditional 2D/3D dimension fast measurement.
Application Case
It is very suitable for measuring distance, radius, angle, arc and other dimensions.Suitable for electronics, machining, hardware, material processing, automobile and other industries. Common workpieces include stamped formables, injection molded parts or laser cut parts
Electronic Industry Mechanical Industry Mobile Industry PCB Industry
Electronic Industry Mechanical Industry Mobile Industry PCB Industry

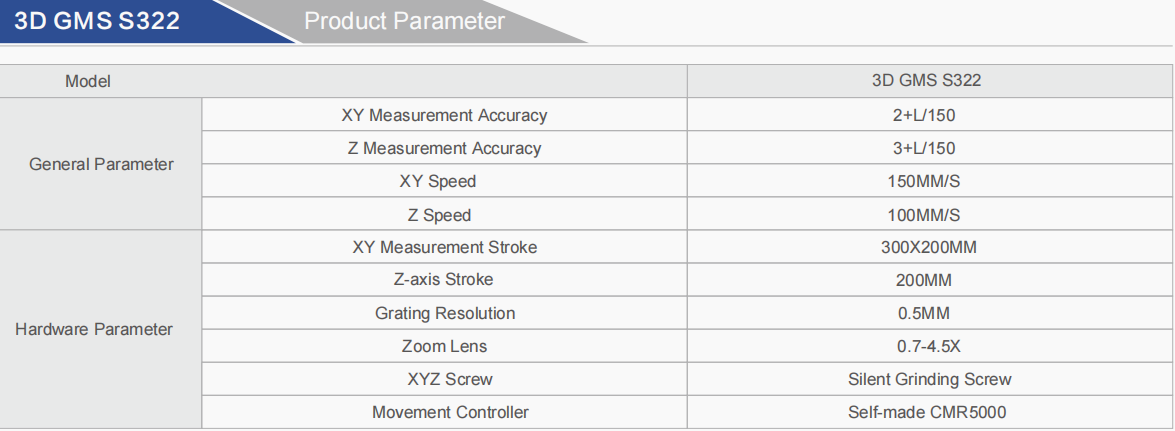

Product Parameter
