Matching zoom lens

share:

2024/11/11

author:adminBOSS

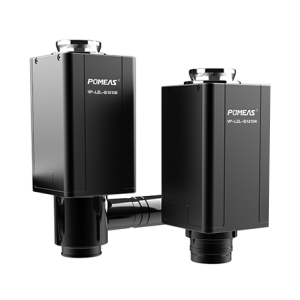

In the field of machine vision, POMEAS zoom lenses have become the first choice of many enterprises due to their excellent performance and wide applicability. To fully utilize the advantages of zoom lenses, reasonable matching is crucial. Today, we will discuss the perfect match of POMEAS zoom lenses with additional lenses, lens tubes, cameras and light sources to present you a visual feast.





POMEAS zoom lenses are characterized by high resolution, large field of view, and low aberration with advanced optical design and manufacturing process. Whether in industrial inspection, medical imaging or scientific research, it can provide clear and accurate images. Its zoom function can meet the demand for different magnification in different scenes, bringing great convenience to users.

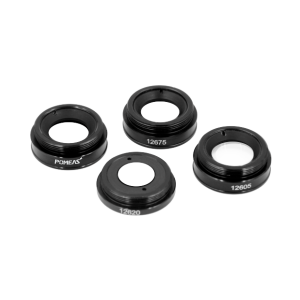

Additional Mirrors

1. Multiple magnification options: POMEAS offers a wide range of magnification add-on lenses that can be used in combination with zoom lenses to further expand or reduce the magnification range. For example, when you need a higher magnification to view small objects, a high magnification add-on lens will allow you to see the details clearly, while a low magnification add-on lens is ideal when you need a larger field of view to view the whole scene.

2. Special function add-on lenses: In addition to the magnification extension, there are also some special function add-on lenses, such as polarizer, filter, and so on. Polarizers can reduce reflected light to improve image contrast and clarity, while filters can selectively transmit light of specific wavelengths to meet the needs of different color detection or special applications.

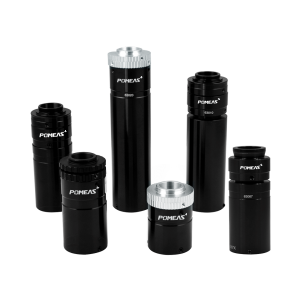

Lens Barrel

1. High quality mirror tube: POMEAS mirror tubes are made of high-strength materials, which are sturdy and durable and can provide stable support for the zoom lens. At the same time, the design of the tube takes into account the optimization of optical performance to ensure accurate light transmission and focusing.

2. Length and Diameter Options: POMEAS offers a wide range of lengths and diameters of mirror tubes according to different application scenarios and installation requirements. Users can choose the right tube according to the actual situation to ensure that the distance and angle between the zoom lens and the object to be detected are optimized.

3. Adjustable Functions: Some of the tubes have adjustable functions, such as focal length adjustment, angle adjustment, etc. These functions allow users to be more flexible. These functions allow users to adjust the position and angle of the lens more flexibly to get the best observation effect.

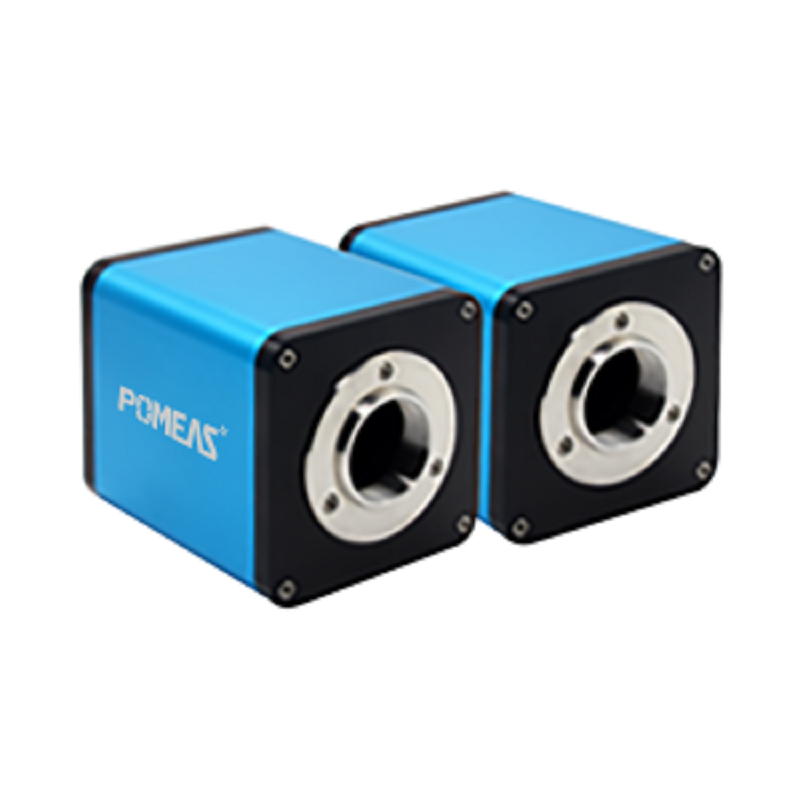

Industrial Cameras

1. Strong compatibility: POMEAS zoom lenses are compatible with many brands of cameras, whether they are industrial cameras, DSLRs or mirrorless cameras, all of them can be seamlessly connected. Users can choose the right camera according to their needs and budget to fully utilize the performance of the zoom lens.

2. High resolution and high frame rate: In order to meet the image quality requirements of different application scenarios, POMEAS recommends pairing a camera with high resolution and high frame rate. This ensures clear images while improving inspection speed and efficiency.

3. A wide range of interface types: POMEAS zoom lenses offer a variety of interface types, such as C interface, CS interface, F interface and so on. Users can choose the appropriate zoom lens according to the camera's interface type to ensure the stability and reliability of the connection.

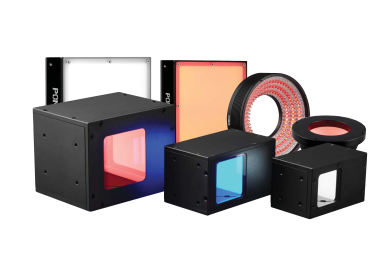

light source

1. Different types of light sources: POMEAS provides many types of light sources, such as ring light source, strip light source, surface light source, etc. Different types of light sources are suitable for different inspection scenarios. Different types of light sources are suitable for different inspection scenarios. Users can choose the right light source according to the shape, color, material and other characteristics of the inspected objects.

2. Adjustable Brightness and Color: POMEAS light source has adjustable brightness and color, users can adjust the brightness and color of the light source according to the actual needs to get the best lighting effect. For example, when detecting objects with small color differences, the light source can be selected with specific wavelengths to improve color contrast; when detecting reflective objects, the brightness of the light source can be lowered to reduce the impact of reflected light.

3. Uniformity and Stability: The uniformity and stability of the light source is critical to image quality. POMEAS light source adopts advanced optical design and manufacturing process to ensure uniform light distribution and stable output. This prevents image quality degradation due to uneven or unstable illumination and improves inspection accuracy and reliability.





The perfect match of POMEAS zoom lens with additional mirrors, mirror tube, camera and light source provides users with one-stop vision solutions. Whether in industrial automation, medical imaging, scientific research and education or other fields, it can meet the user's demand for high quality images. We believe that POMEAS zoom lenses will bring you more surprises and value through reasonable matching and optimization.
