Line laser contour sensor is an advanced measuring device, which uses the principle of laser triangulation to project a laser line onto the surface of the object to be measured, so as to obtain the contour information of the object. Below are the main features of line laser contour sensors and their applications in different fields:
Specificities
1、Non-contact measurement:
① The line laser profile sensor adopts non-contact measurement, avoiding the wear and errors that may be caused by traditional contact measurement.
② No measuring force, no damage to the object to be measured, suitable for measurement of various materials and shapes.
2、High precision:
① Through a unique spot processing algorithm, the Line Laser Profile Sensor is capable of high-precision measurement with a small error range.
② Full-scale non-linearity of ±0.05%FS or higher can be achieved to meet the needs of high-precision measurement.
3、Fast response:
① The laser fast control algorithm enables the line laser profile sensor to have a small hysteresis, which is suitable for dynamic testing and real-time control.
② Stable measurement can be achieved even on fast moving objects.
4、Wide range of adaptability:
① Applicable to the measurement of various complex shapes and irregular objects.
5、Powerful functions:

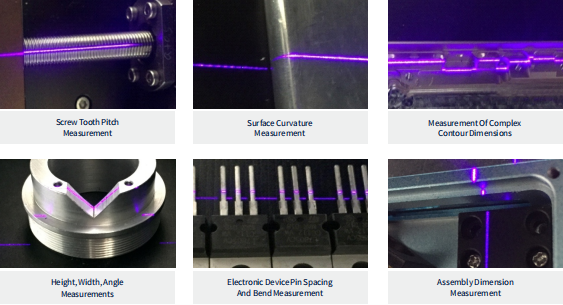

① It can realise the measurement of many 2D parameters such as height, width, position, angle and contour.
② Multiple dimensions on a contour can be measured at the same time, improving measurement efficiency.
6、Easy to integrate:
① Line laser contour sensors are compact and easy to integrate with other equipment, suitable for a variety of automated production lines and inspection systems.
Appliance
1、Industrial automation: In the manufacturing process of industrial robot manipulator arm, line laser contour sensor can be used to assist in the operation of depalletising, loading and unloading, etc., to improve the production efficiency, and is used to detect the product quality on the assembly line, such as the size, shape, etc., to ensure that the product meets the standard.
2、Aerospace: in the field of aerospace, line laser contour sensor can be used for precision parts measurement and detection, to ensure the accuracy of the size and shape of the parts. It is used to detect defects such as flatness and cracks on the surface of the aircraft to improve the safety and reliability of the aircraft.
3、Auto manufacturing: In the process of automobile manufacturing, the line laser contour sensor can be used to check the size and shape of automobile airbags, handle surfaces and seals and other parts. Used to detect the flatness of the car body, weld quality, etc., to ensure the overall quality and safety of the car.
4、Metal processing: In metal processing and manufacturing process, line laser profile sensor can be used to measure the size, shape and thickness of metal parts and other parameters. It is used to detect surface defects, cracks, etc. of metal parts to improve the quality and reliability of metal parts.
5、3D scanning and modelling: line laser contour sensor can be used for 3D scanning and modelling of the object, to obtain the object's three-dimensional contour information. In the process of engineering design, product development and manufacturing, 3D scanning and modelling technology can provide accurate data support and improve the efficiency and quality of design and manufacturing.
