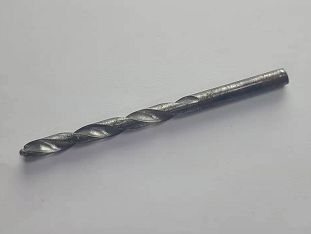

How do I measure the outside diameter of a CNC tool?




In CNC machining, the selection and use of tools has a crucial impact on machining quality and efficiency. To ensure the correct selection and accuracy of the tool, the measurement of its outer diameter and other dimensions is one of the important links. If the tool size deviation is too large, it may lead to workpiece scrap, or even damage the machine tool. Therefore, it is crucial to accurately measure the outer diameter and other dimensions of CNC tools.



The traditional measurement method is to use calipers, micrometers and other tools to measure the size of the tool. This method is simple to operate, but the accuracy is low and requires manual operation, which is less efficient.

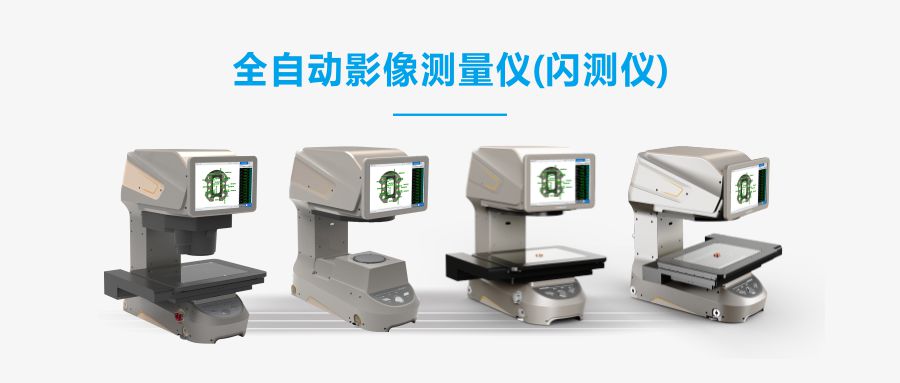

The POMEAS IMAGE3 series of fully automatic image measuring instruments is an intelligent dimensional measurement device that can quickly and accurately complete the dimensional measurement of CNC tools. It has the following advantages over traditional measurement methods:



1. High precision: equipped with self-developed high-resolution telecentric lens and high-precision camera and image processing algorithms, it can accurately measure the outer diameter and other dimensions of the tool, and the measurement accuracy can reach micron level.



2. Batch fast measurement: the equipment can realise batch automatic measurement, only need to put the tool to be measured on the measuring platform, the instrument can automatically complete the measurement. This greatly improves the measurement efficiency and reduces the time and error of manual operation.



3. Intelligent data analysis: the measurement data can be displayed in the form of charts or figures, which is convenient for users to quickly understand the dimensions of the tool and make corresponding decisions based on the results of data analysis.



4. Easy operation: the equipment is easy and convenient to operate, no need for professional and technical personnel to complete the measurement. At the same time, the instrument can also be customised according to user needs, to meet the actual production needs of different enterprises.



Measuring the OD and other dimensions of CNC tools with the POMEAS IMAGE3 is much smarter and more efficient than traditional measurement methods. By accurately measuring the OD and other dimensions of the tool, the machining accuracy and surface quality of the workpiece can be better controlled, thus improving product quality and productivity and reducing production costs.
