6 Key Points for Lens Selection for Laser Autofocus Microscopy Systems




The selection of lenses for laser autofocus microscopy systems involves a number of key elements that together determine the performance of the lens and the application scenario. Select the right lens for sample inspection by following the 6 key points for selection.



1, imaging quality: imaging quality is one of the most important considerations in the selection of lenses for laser autofocus microscopy systems. High-quality lenses should be able to provide clear, sharp images to reveal the fine structure and characteristics of the sample. When selecting a lens, attention should be paid to its resolution, contrast, and distortion and other performance indicators.


2, working distance: working distance refers to the distance between the lens and the sample. The working distance of different lenses is different, which directly affects the use of microscopy systems and applicable scenes. For example, some lenses may be suitable for close observation, while others are suitable for a longer distance. Therefore, in the choice of lens, should be based on the actual application requirements to determine the appropriate working distance.


3, the focal length range: the focal length range determines the range of samples that can be clearly imaged by the lens. For the need to observe different sizes or depths of the sample, should choose a lens with a larger focal length range. At the same time, the autofocus function should also be taken into account to ensure that the system can quickly and accurately adjust the focus to obtain a clear image.


4, laser response: laser autofocus microscopy systems usually use a specific wavelength of the laser for illumination and imaging. Therefore, the laser response of the lens is also an important selection factor. The lens should have a good laser transmittance to ensure that the required wavelength range can obtain high-quality images.


5, mechanical interface and compatibility: in the selection of the lens, you also need to consider its mechanical interface and compatibility with other parts of the microscope system. For example, the lens mounting size, thread type and interface standards should be matched with other parts of the microscope system to ensure the stability and reliability of the system.


6, durability and maintenance: the durability and maintenance of the lens is also a selection of factors to consider. High-quality lenses should have a long service life and stable performance, at the same time should be easy to clean and maintain, in order to reduce the cost of use and improve work efficiency.

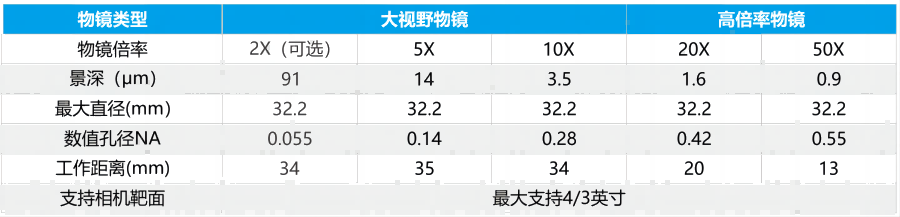

Lens Parameters:


The selection of lenses for laser autofocus microscopy systems is a comprehensive process that requires comprehensive consideration of six factors, including imaging quality, working distance, and focal length range. When selecting lenses, it is recommended to weigh and compare them according to specific application requirements and budget constraints in order to choose the most suitable lens type. It is also advisable to refer to professional literature, product manuals and user reviews for information to gain a more comprehensive understanding and comparison of the performance characteristics of different lenses.
