Core Requirements for Type-C Charging Port Testing

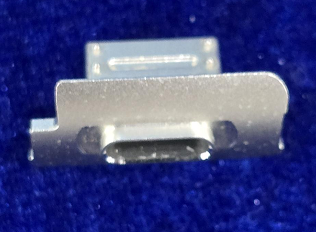

In today's era of widespread electronic devices, the Type-C charging port has become the mainstream interface for smartphones, laptops, and other devices due to its advantages of bidirectional charging, high-speed data transfer, and reversible plugging. Type-C charging port inspection requirements cover multiple aspects. Dimensional inspection forms the foundation, with overall length, width, and height tolerances strictly controlled within ±0.01mm. Internal pin spacing, height, and diameter must be precise. The housing edges require smoothness free of burrs, deformation, or cracks, as defects would compromise compatibility and user experience.

Type-C Charging Port Inspection Solution: Telecentric Measurement System HM-1040

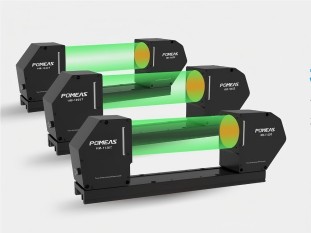

The HM-1040 Telecentric Measurement System perfectly meets these inspection requirements. It offers high-precision measurement capabilities through an advanced optical imaging system and image processing algorithms, achieving measurement accuracy of 0.001mm and repeatability of 0.0005mm. This enables precise measurement of minute dimensions on interfaces and pins. Its high-efficiency inspection speed is also critical, with a single inspection taking only seconds, allowing seamless integration with production line cycle times.

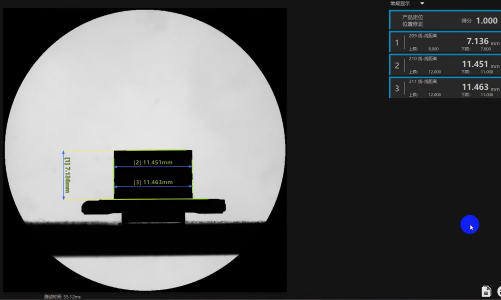

Test Results
