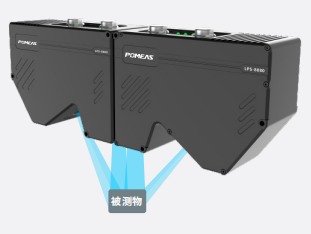

In the fields of machine vision and precision measurement, line laser profile sensors have become the preferred choice for numerous industrial inspection, reverse engineering, and automated control applications due to their high-precision, high-speed 3D data capture capabilities. However, during the selection process, balancing the three core parameters—Z-axis resolution, measurement range, and accuracy—often leaves users facing difficult decisions. This article uses the POMEAS LPS Series line laser profile sensor as an example to delve into the intrinsic relationships among these parameters, helping you identify the sensor best suited to your application requirements.

I. Z-axis Resolution

Z-axis resolution, defined as the smallest detectable change in the Z direction, is a critical metric for evaluating a sensor's ability to capture fine details. High resolution enables the sensor to discern minute surface irregularities with greater precision, making it essential for applications requiring measurement of surface roughness, microstructures, and similar features. Taking the LPS-8060 as an example, its Z-axis resolution reaches up to 0.5μm, allowing it to clearly capture extremely subtle surface variations.

However, high resolution comes at a cost. As resolution increases, the sensor's measurement range typically decreases. This is because higher resolution demands denser light spot distribution and more sophisticated optical systems, thereby limiting the measurable distance along the Z-axis. Therefore, when selecting a high-resolution sensor, it is essential to ensure its measurement range meets the requirements of the specific application scenario.

II. Measurement Range

The measurement range refers to the maximum distance a sensor can measure along the Z-axis, determining the range of object height differences it can handle. For applications requiring measurement of large height differences and large-sized objects—such as automotive body inspection or reverse engineering of large workpieces—selecting a sensor with a wide measurement range is crucial. For instance, the LPS-8400 boasts a far-end measurement range of up to 239.4mm or higher, effortlessly tackling measurement challenges posed by large-sized objects.

However, expanding the measurement range often comes at the cost of reduced resolution. This is because a wide measurement range necessitates a sparser distribution of light points and a simpler optical system, thereby sacrificing some detail capture capability. Therefore, when selecting a sensor with a wide measurement range, it is essential to weigh its impact on detail resolution.

III. Accuracy

Accuracy is a critical metric for evaluating the discrepancy between a sensor's measurement results and the true value, directly determining the reliability of measurement data. For applications requiring high-precision measurement, such as precision machining and quality control, selecting sensors with high accuracy is essential. Accuracy is influenced by both resolution and measurement range. Generally, under identical conditions, sensors with higher resolution tend to offer greater accuracy but may have limited measurement ranges. Conversely, sensors with broader measurement ranges may exhibit slightly lower accuracy but can handle a wider variety of measurement scenarios.

IV. Selection Strategy

During the actual selection process, users should balance the relationship between Z-axis resolution, measurement range, and accuracy based on the specific requirements of their application scenario. If the application requires capturing minute details, such as surface roughness measurement, high-resolution sensors should be prioritized. For applications involving large height differences or oversized objects, sensors with wide measurement ranges are recommended. Where measurement data accuracy is paramount, select sensors offering the highest precision while ensuring adequate resolution and measurement range.

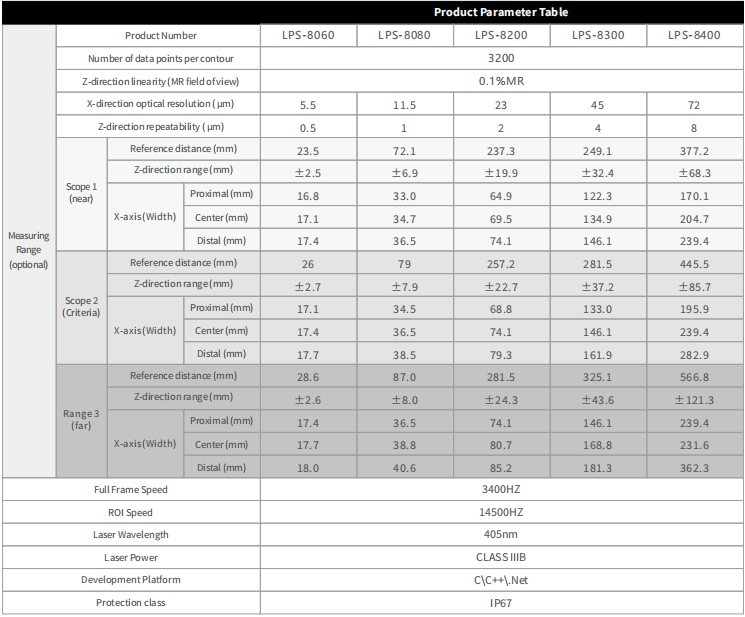

Taking the POMEAS LPS series as an example: for applications requiring high-precision micro-measurements, the LPS-8060 or LPS-8080 are ideal choices; for applications handling large-sized objects or significant height differences, the LPS-8300 or LPS-8400 are more suitable.
