In the field of precision manufacturing, product inspection accuracy and efficiency are directly related to the core competitiveness of enterprises. POMEAS specializes in optical measurement technology, and its flash tester revolutionizes the inspection process by importing product CAD models for fitting and comparison.

Principles of Flash Meter and CAD Fitting Detection Techniques

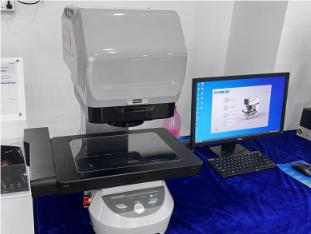

The POMEAS flash tester utilizes a high-resolution optical imaging system and sophisticated algorithms to quickly capture 2D product contour data. After importing the CAD model of the product, the instrument utilizes advanced image matching and geometric fitting algorithms to accurately superimpose the actual measured contour with the theoretical CAD model. Through pixel-level comparison, it calculates the key parameters such as dimensional deviation and form tolerance in milliseconds, realizing non-contact full-size inspection.

Technical Core Advantages

1, micron-level precision control: the traditional measurement needs to be sampled point by point, while the flash meter combined with CAD fitting can analyze the complex contour of the whole domain. Precision gear detection, for example, tooth shape, tooth pitch and other parameters of the measurement repeatability accuracy of ± 2μm.

2, intelligent defect recognition: CA model as the gold standard, flash tester can automatically mark the excess area. In the cell phone frame inspection scenario, more than 20 indicators such as aperture position degree, edge chamfering, etc. are detected simultaneously.

3, data traceability: measurement data and CAD coordinate system depth binding, generate inspection reports with three-dimensional labeling.

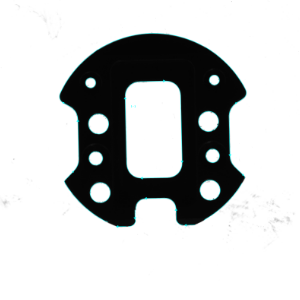

Case Show:

POMEAS flash tester is equipped with self-developed IMAGE image measurement software, CAD format import. Its modular design can be adapted to the needs of multiple scenarios, from small hardware parts to large plastic molds, all of which can be accurately inspected. With ISO 9001 certification system and localized service network, it provides customers with full-cycle protection from solution design to after-sale maintenance.

POMEAS flash testers combined with CAD fitting technology are reshaping the standard of precision inspection under the wave of smart manufacturing. We continue to drive product iteration with innovation, help enterprises achieve quality leap and cost optimization, and invite partners from all industries to explore the new future of intelligent inspection.
