3D Contour Measurement Case: Mobile Phone Camera Module

share:

2025/05/29

author:adminBOSS

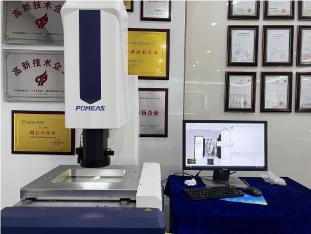

In the highly competitive field of cell phone manufacturing, where precision is critical, the size measurement of cell phone camera modules is a key element. POMEAS 3D Profile Dimension Measuring Instrument stands out in this field with its excellent performance, and the measurement results are directly “ahead of the curve”.

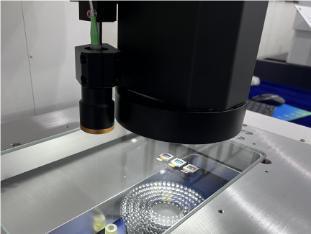

The POMEAS 3D Profile Gauge integrates an advanced point-spectrum sensing module, a core component that acts as the “intelligent eye” of the Gauge, capable of accurately capturing subtle information on the surface of the camera module. By emitting a point spectrum of specific wavelengths, the optical characteristics of the module surface are quickly and accurately captured, providing a reliable basis for subsequent dimensional calculations and 3D contouring.





The zoom lens module is the “flexible arm” of the measuring instrument. It can flexibly adjust the magnification according to different measurement needs, so that every detail of the tiny flat dimensions on the camera module can be clearly seen, without sparing any dimensional deviation that may affect the performance of the module.





The stable measurement platform is the “solid backing” of the whole measurement process. It effectively reduces the influence of external vibration and interference on the measurement results, provides a stable working environment for the measuring instrument, and ensures the accuracy and repeatability of the measurement data.





In practical application, POMEAS 3D Profile Dimension Measuring Instrument shows powerful compatibility. It can complete the accurate measurement of the plane size of the cell phone camera module, whether it is the length and width of the module, or the subtle dimensions of some key parts, it can quickly give accurate data; and it can also carry out 3D contour scanning, which can present the complete three-dimensional shape of the camera module, providing all-round and multi-dimensional data support for R&D, production and quality control.
