1 minute to understand the advantages of high-precision image measuring instrument

share:

2025/06/17

author:adminBOSS

Are you still worried about product size measurement? In the face of the precision processing of metal parts, the complex curved surface of springs, the fragile characteristics of glass, the traditional measuring tools always let you fall into the predicament of “inaccurate measurement, fast measurement, incomplete measurement”? Today, let's explore a subversion of the traditional quality control mode of black technology - high-precision image measuring instrument IMAGE 3, to see how it is a “one-button operation” to crack the measurement problems!







Pain Point Terminator: The Magic of Measurement with Full Material Adaptation

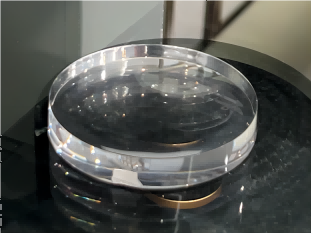

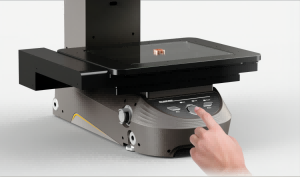

Traditional measuring equipment is often “picky” when facing different materials: metal reflection interferes with data, spring deformation affects accuracy, and glass transmittance causes misjudgment. This measuring instrument is equipped with an intelligent spectral compensation system, as if the equipment is equipped with a “see-through eye”, whether it is a highly reflective metal parts, elastic deformation or transparent glass products, just touch the screen, 0.3 seconds to complete the full-size data acquisition, repeatable measurement accuracy stabilized at the level of 1 micron, so that the difference in material is no longer a roadblock to the accuracy.







Visual Revolution: Dual Telecentric Lenses Build a New Dimension of Measurement

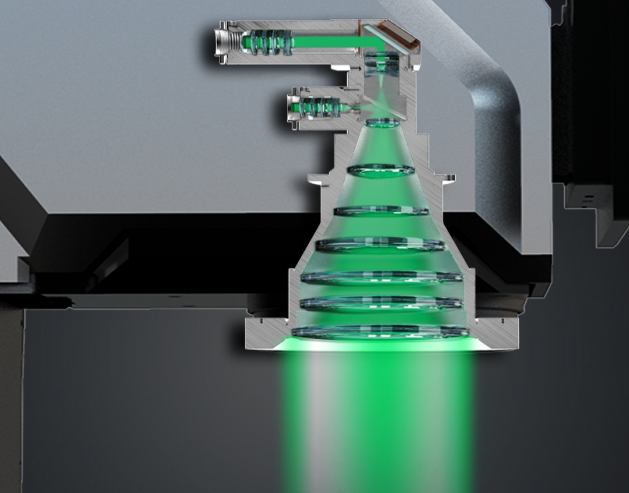

The built-in high-definition double telecentric lens of the high-precision image measuring instrument is called the “optical brain”, which integrates the dual advantages of object-side telecentricity (low aberration) and image-side telecentricity (high depth of field) at the same time. This is equivalent to the measurement process plus double insurance: both to ensure that the object being measured in the lens field of view, whether near or far, are not deformed, but also to ensure that the projected image edges are clear and sharp. Measurement data show that in the 100mm measurement range, the distortion rate is controlled within 0.01%, equivalent to the size of a soccer field, the error does not exceed the thickness of a coin.







Efficiency Engine: Batch Measurement Reconfigures the Production Beat



The 300×200mm large mobile platform can accommodate up to 20 standard workpieces at the same time, with the AI automatic identification and positioning system, realizing the whole process automation of “placement-measurement-output”, the high-precision image measuring instrument supports the DXF drawings to be directly imported and compared, and the measurement report is automatically generated, so that the quality inspection link can be truly integrated into the intelligent production line.





Is your organization facing the following challenges: Measurement bottlenecks in multi-variety, small-lot production? Quality fluctuations due to manual quality control? Loss of production capacity due to equipment changeover? Welcome to share your measurement pain points in the background, or click the “Consultation” button to get the exclusive solution, let us witness the new possibilities of precision manufacturing together!
