Spectral Confocal Sensor is a high-precision non-contact measurement device based on optical dispersion principle and confocal imaging technology, which can realize sub-micron resolution, multi-material compatibility and anti-environmental interference capability, and has become a core tool in precision manufacturing, semiconductor inspection and other fields.

1. white light dispersion: through the dispersion lens will be composite white light decomposition into different wavelengths of monochromatic light, the formation of spatial distribution of the spectrum by wavelength.

2. confocal focusing: only allows a specific wavelength of light focused on the surface to be measured, the reflected light returned along the original path, filtered by the pinhole and analyzed by the spectrometer.

3. wavelength-distance mapping: changes in the height of the surface of the object to be measured will lead to a shift in the wavelength of the returned light, which can be analyzed by spectral analysis to solve the exact distance value.

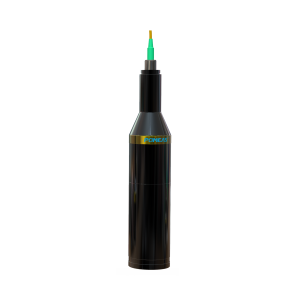

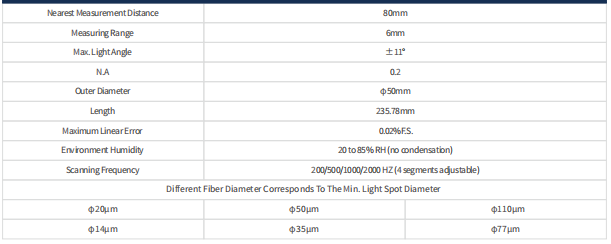

Spectral Confocal Sensor SFS-D8080 Parameters

Technical Advantages

• Multi-material compatibility: Can measure surfaces with different reflectivity such as metal, glass, plastic, liquid, etc.

• Strong anti-interference ability: Insensitive to ambient light and surface tilt (usually supported within ±15°).

• High-speed response: Sampling frequencies up to thousands of Hz for dynamic measurements (e.g. vibration analysis).

Typical Application Scenarios

• Semiconductor industry: Wafer thickness, warpage detection.

• 3C electronics: Cell phone glass cover flatness, glue height measurement.

• Automobile manufacturing: Engine block bore, bearing surface roughness inspection.

• Medical field: Surface contour of lenses, syringe needle size monitoring.
