In the fields of industrial automation and intelligent robotics, the dynamic grasping capability of robotic arms serves as a core metric for evaluating production efficiency and flexibility. However, traditional vision systems often suffer from positioning errors when encountering high-speed moving targets or complex environments, due to insufficient frame rates, color interference, or latency issues, thereby compromising grasping accuracy. High-frame-rate monochrome cameras, with their millisecond-level response, high-contrast imaging, and anti-interference capabilities, serve as the “visual engine” for robotic arm dynamic grasping scenarios. They provide critical technological support for precise positioning and real-time guidance.

I. The Triple Challenges Facing Traditional Visual Systems

1. Insufficient frame rate causes motion blur: Traditional color cameras typically operate below 60fps. When capturing fast-moving objects—such as electronic components on assembly lines or packages in sorting systems—images often exhibit motion blur, resulting in fuzzy edges and feature loss. This prevents robotic arms from accurately identifying target locations.

2. Color information hinders computational efficiency: Color cameras process complex RGB tri-channel data, limiting real-time capabilities. In unevenly lit or reflective environments, color noise further degrades positioning accuracy.

3. Environmental interference reduces robustness: Industrial settings expose systems to glare, shadows, and oil contamination. Traditional vision systems frequently misdetect due to environmental changes, causing robotic arm failure or collision risks.

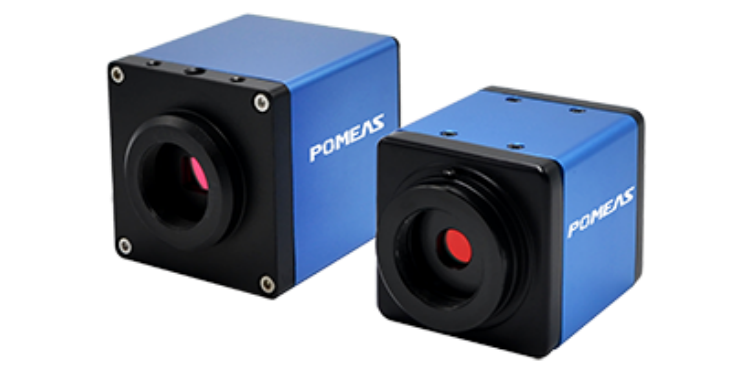

II. Technical Advantages of High-Frame-Rate Monochrome Cameras: Tailored for Dynamic Capture

1. Millisecond-Level Response: High-frame-rate monochrome cameras achieve frame rates from 500fps to over 1000fps, far surpassing traditional cameras. They capture multiple frames within extremely short intervals, clearly revealing edge features even when targets move at 5m/s, eliminating motion blur.

2. High-Contrast Imaging: Monochrome cameras capture only grayscale information, eliminating color data processing and reducing algorithm complexity by over 60%. Through edge detection, template matching, and other algorithms, they rapidly extract target contours and feature points with positioning accuracy of ±0.05mm, meeting precision assembly requirements.

3. Strong Anti-Interference Capability: Monochrome cameras exhibit low sensitivity to lighting variations. When paired with infrared illumination or laser positioning technology, they deliver stable imaging in scenarios involving intense light, low illumination, or reflective surfaces. Additionally, their simple structure and low cost make them ideal for large-scale industrial deployment.

III. Core Process of High-Frame-Rate Monochrome Camera-Guided Dynamic Grasping by Robotic Arms

1. High-Speed Image Capture: Freezing Motion Moments in Milliseconds

The camera captures targets continuously at a frame rate exceeding 500fps. Utilizing a global shutter eliminates the jelly effect, ensuring distortion-free images in every frame. For instance, when retrieving a battery from a flying drone, the camera can complete image capture within 0.002 seconds.

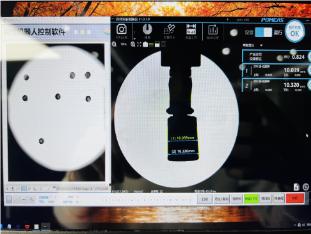

2. Real-Time Image Processing: Edge Computing Accelerates Decision-Making

• Object Detection: Identify objects using template matching or deep learning models;

• Pose Estimation: Calculate the object's position and orientation (6DoF) in the camera coordinate system;

• Trajectory Planning: Generate optimal grasping paths by integrating robotic arm kinematic models.

Technical Highlights：Some systems utilize FPGA acceleration to reduce image processing latency to under 1 millisecond, enabling a fully real-time closed-loop workflow from capture to processing to guidance.

3. Collaborative Robot Arm Control: Precision Grasping and Dynamic Obstacle Avoidance

Processed pose data is transmitted via industrial protocols such as EtherCAT and Profinet to the robot arm controller, driving the end effector to adjust its angle and force.

If you're seeking solutions to enhance the dynamic grasping efficiency of robotic arms, high-frame-rate monochrome cameras are undoubtedly your best choice! Contact us today to obtain customized system integration solutions and embark on a new chapter in intelligent grasping!
