In the fields of precision manufacturing and automated inspection, “seeing clearly” is merely the baseline; “measuring accurately” is what truly matters. As the era of Industry 4.0 advances, lenses—the core visual components of coordinate measuring machines—are undergoing a technological evolution from “manual focusing” to “intelligent 4K high-definition ZOOM LENS.”

I. Automatic Zoom: From “Manual Search” to “Smart Capture”

In traditional inspection processes, operators must frequently adjust the lens magnification manually, which is not only inefficient but also prone to measurement errors caused by human error. Modern auto-focus ZOOM LENSes have completely transformed this situation.

Equipped with integrated motor drives and controllers, these lenses support programmable magnification switching. Whether performing a general scan at low magnification or examining details at high magnification, they respond in milliseconds. This not only significantly improves the inspection efficiency of coordinate measuring machines but also lays a solid hardware foundation for achieving precision measurements at the 0.01 mm or even micrometer level.

II. The 4K Era: When Auto-Zoom Meets High-Definition Imaging

While automatic zoom addresses the issue of “efficiency,” image quality determines the lower limit of “precision.” The emergence of 4K HD automatic ZOOM LENSes marks the dawn of the ultra-high-definition era in industrial optics.

Compared to traditional optical lenses, 4K HD ZOOM LENSES offer two key advantages:

1. Leap in Resolution: Compatible with 4K industrial cameras featuring 8 megapixels or higher, it maintains distortion-free and ghosting-free image edges even at maximum magnification。

2. True-to-Life Reproduction: For fine scratches, burrs, or color aberrations, 4K resolution offers detail capture capabilities far exceeding the limits of the human eye, ensuring that high-definition imaging is not just a slogan, but a visual guarantee that provides precise data sources for algorithmic analysis.

III. Coaxial Light Technology

When inspecting highly reflective objects such as mirrors, wafers, or metal coatings, standard lenses often become “blinded” due to stray light interference. This is where coaxial high-definition ZOOM LENSes demonstrate their unique value.

Thanks to their built-in coaxial optical design, light is evenly directed along the lens’s axis onto the object being inspected. This design effectively eliminates shadows and glare interference, resulting in clearer contrast and sharper edges in the image. Combined with 4K HD resolution, coaxial high-definition ZOOM LENSes can accurately capture the contours of even transparent or mirror-like objects, ensuring that stringent measurement requirements with a precision of 0.01 mm can still be met in complex lighting conditions.

IV. Accuracy: 0.01 mm

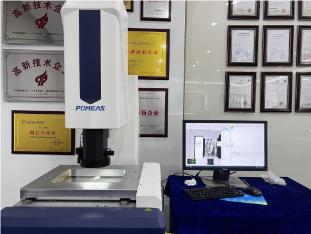

In the field of coordinate measuring machines (CMMs), the high-definition ZOOM LENS serves not only as the “eyes” but also as the “ruler.” To achieve measurement accuracy of up to 0.01 mm, the lens must feature extremely low optical distortion and exceptional achromatic correction capabilities.

The new generation of high-definition ZOOM LENSes for coordinate measuring machines utilizes multi-layer coating technology and ultra-low dispersion glass elements to ensure uniform image quality from the center to the edges of the image. This means that when the software captures the edge of a circular hole on the screen, the error of that edge in physical space is strictly controlled within 0.01 mm. This pursuit of optical perfection is precisely what enables modern precision measuring instruments to successfully handle the critical task of inspecting new energy vehicle components and precision electronic connectors.

From the intelligent efficiency revolution of auto-ZOOM LENSES to the ultra-high-definition imaging capabilities of 4K auto-ZOOM LENSES, and the breakthroughs achieved by coaxial high-definition ZOOM LENSES in overcoming the “final barriers” posed by challenging samples, a new generation of optical components is redefining the limits of industrial inspection.

Choosing a high-definition ZOOM LENS for a coordinate measuring machine that supports 4K HD resolution, features coaxial illumination, and offers a measurement accuracy of up to 0.01 mm is not merely a choice of hardware; it is a step toward establishing a pathway to high-precision, high-efficiency, and fully automated quality control for your business.
