In today’s industrial production and quality inspection sectors, where efficiency and precision are paramount, Telecentric Measurement Systems have emerged as a shining star, becoming an indispensable tool for many companies thanks to their exceptional performance. Among these, the HM series of Telecentric Measurement Systems stands out with its wide range of models and outstanding features, precisely meeting measurement needs across various applications.

I. Unique Advantages of Telecentric Measurement Systems

1. Lightning-Fast Measurement Speed

Equipped with advanced image processing technology, the telecentric measurement system can measure objects simply by placing them on the measurement platform. Compared to traditional measurement methods, it significantly reduces measurement time, minimizes waiting time in production processes, and effectively boosts overall production efficiency, enabling companies to respond more quickly to market demands.

2. Uncompromising Measurement Accuracy

The perfect combination of a high-precision optical system and sophisticated algorithms enables the Telecentric Measurement System to keenly capture even the slightest changes in surface features, achieving highly accurate dimensional measurements. Whether dealing with tiny electronic components or precision mechanical parts with nearly exacting accuracy requirements, it delivers accurate and reliable measurement results, ensuring product quality.

3. Consistent Measurement Stability

This measurement instrument features robust interference resistance, maintaining stable measurement results under varying environmental conditions. Even when faced with complex and fluctuating lighting or temperature changes, it continues to output consistent and reliable measurement data, providing a solid foundation for production quality control and eliminating concerns about measurement fluctuations caused by environmental factors.

4. Compact and Flexible Integration

The Telecentric Measurement System features a compact design and small footprint, occupying minimal space. This allows for easy integration into various production equipment or inspection lines without requiring major modifications to existing production lines. It significantly reduces integration costs and complexity, enhances the automation level of production lines, and provides strong support for enterprises to achieve intelligent manufacturing.

5. Broad Material Compatibility

Whether the object is made of metal, plastic, ceramic, or glass, the Telecentric Measurement System can perform accurate measurements. This broad applicability allows it to play a vital role across multiple industries, including electronics, machinery, automotive, and aerospace, meeting the diverse measurement equipment needs of different sectors.

II. Detailed Overview of the HM Series Telecentric Measurement Systems

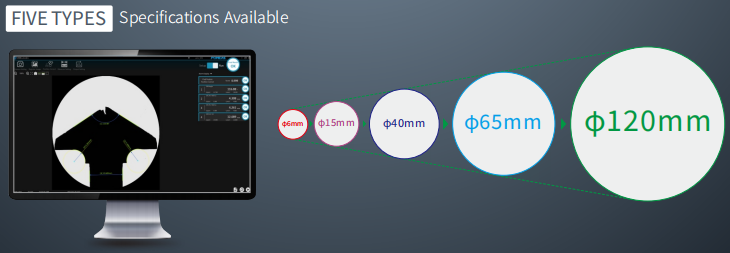

1. HM - 1006：The Perfect Choice for Precision in Micro-Components

• Maximum measurement diameter: 6 mm. This model is specifically designed for measuring small parts, such as electronic components and minute components in precision mechanical parts.
• Accuracy: ±0.3 μm. Its extremely high accuracy meets the stringent requirements for precise measurement of minute dimensions, ensuring that product quality meets high standards and providing reliable measurement assurance for the production of small parts.

2. HM - 1015：A Reliable Partner for Small and Medium-Sized Parts

• Maximum measurement diameter: 15 mm. It can be used to measure slightly larger parts, such as small optical lenses and precision mold components.
• Accuracy: ±0.6 μm. While maintaining a certain measurement range, it still delivers highly accurate results, providing reliable data support for quality control of small and medium-sized parts and helping companies improve product quality.

3. HM - 1040：The Perfect Choice for Medium-Sized Parts

• Maximum measurement diameter: 40 mm. Suitable for measuring medium-sized objects, such as certain mechanical components and automotive parts.
• Accuracy: ±2 μm. It meets the measurement accuracy requirements for most medium-sized parts, ensuring both measurement efficiency and data accuracy, and provides an efficient solution for the production and inspection of medium-sized parts.

4. HM - 1065：A Reliable Partner for Larger Parts

• Maximum measurement diameter: 65 mm. It can be used to measure larger parts, such as specific sections of large molds and mechanical structural components.
• Accuracy: ±2.2 μm. It maintains relatively high accuracy even across a wide measurement range, providing robust support for quality control during production and helping companies better manage the quality of larger parts.

5. HM-1120: The Expert in Measuring Large Parts

• Maximum measurement diameter: 120 mm. This model is suitable for measuring large objects, such as large mechanical parts and aerospace components.
• Accuracy: ±3.5 μm. Despite its wide measurement range, it still delivers measurement results that meet specific accuracy requirements, fulfilling the needs for measuring large parts in mass production and providing professional assurance for the production and inspection of large components.

III. How to Choose the Right Telecentric Measurement System

When selecting an HM Series Telecentric Measurement System, several factors must be taken into account.

1. Determine the size range of the object to be measured, select an appropriate model based on the maximum measurement diameter, and ensure that the measuring instrument can easily accommodate the object.

2. Select a model with measurement accuracy that meets the product’s strict requirements.

3. If accuracy requirements are extremely high, prioritize models with higher accuracy; if accuracy requirements are relatively lenient, consider factors such as cost while ensuring basic requirements are met.

4. Additionally, fully consider factors such as the measurement environment, measurement frequency, and the difficulty of integrating with other production equipment.
