I. Laser Measurement Systems: Precision Instruments for Measuring the World at the Speed of Light

1. Technical Principles

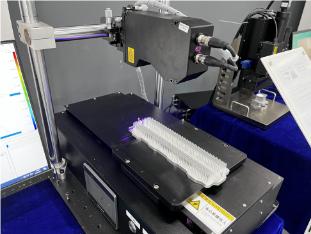

Laser measurement systems utilize photons as information carriers, enabling non-contact measurement through laser interferometry, spot positioning, or time-of-flight techniques. Taking the German Polytec OFV-534 microscopic vibration measurement system as an example, its laser head with a 3μm spot diameter achieves displacement resolution at the 2-picosecond (pm) level by analyzing reflected light phase changes—equivalent to one-hundredth of an atomic diameter. In aerospace applications, this system detects diaphragm vibrations in rocket engines. Its maximum tracking speed of 810 mm/s captures transient deformations during high-speed combustion processes.

2. Core Competitive Advantages

• Ultra-Precision Measurement Capability: Laser interferometry achieves sub-micron accuracy, while the RENISHAW machine tool inspection system delivers positioning accuracy of ±(0.7+0.3%L)μm, capable of diagnosing 12 types of machine tool errors including servo mismatch.

• Exceptional Dynamic Response: The HP 5528A CNC calibration system employs a rail-and-roller-shoe structure, with moving carriage deformation less than 0.3 μm/m, meeting the dynamic calibration demands of high-speed machining centers.

• Strong Environmental Adaptability: Under high-temperature conditions, the system employs real-time thermal deformation correction via temperature sensors. During engine combustion testing, a 532nm wavelength laser with 5ns pulses penetrates high-temperature gas flows to reconstruct three-dimensional velocity field distributions.

II. Image Measuring Instrument: A Machine Vision-Driven Intelligent Inspection Platform

1. Technical Principles

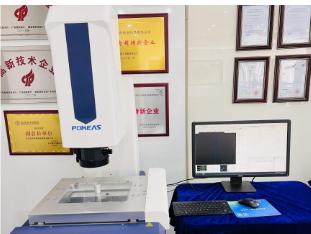

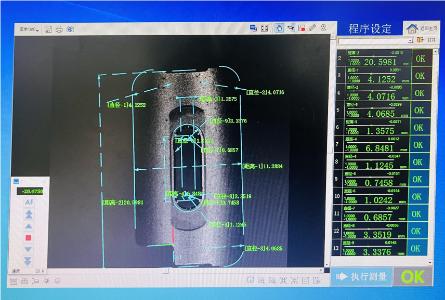

The image measuring instrument utilizes computer vision technology to capture images via a high-resolution industrial camera, employing image processing techniques such as edge detection and sub-pixel algorithms to extract features. Taking the POMEAS image measuring instrument as an example, it is equipped with a 20-megapixel camera and dual-side double telecentric lenses, enabling micron-level precision measurement. In connector pin height inspection, the system completes measurement of a single pin within 0.3 seconds using autofocus and template matching technology, with repeatability error less than 1μm.

2. Core Competitive Advantages

• High-efficiency 2D measurement: The C1 controller supports simultaneous multi-camera acquisition. Combined with intelligent algorithms, it can measure hundreds of feature points at once. Field testing at an electronics factory demonstrated a 5-fold increase in batch inspection efficiency compared to contact-based measurement.

• Non-contact, non-destructive inspection: Optical measurement avoids physical contact, making it particularly suitable for inspecting soft materials (such as rubber seals) and precision optical components.

• Outstanding Intelligence: Built-in AI algorithms automatically identify defects. An automotive parts factory application demonstrated a 99.7% detection rate for surface scratches with a false positive rate below 0.3%.

III. Application Differences

1. Precision Dimension

Laser measurement systems hold an absolute advantage in the Z-axis (height/thickness) direction, with their picometer-level resolution meeting nanomanufacturing demands. Image measuring machines excel in XY-plane measurements, particularly suited for two-dimensional feature extraction of complex contours.

2. Efficiency Dimension

Image measuring machines deliver significant efficiency in batch inspection, with parallel processing capabilities enabling simultaneous measurement of multiple features. Laser systems excel at dynamic process monitoring, such as real-time vibration analysis during machine tool operations.

As an industry-leading supplier of measurement equipment, POMEAS deeply understands the varying measurement requirements across different scenarios. We provide not only equipment, but also complete solutions.
