In fields such as precision manufacturing, semiconductor inspection, and biological research, the speed and accuracy of focusing directly determine observation efficiency and data reliability. Traditional microscopes are slow to focus, prone to losing focus, and rely on manual expertise; they are particularly ineffective when dealing with dynamic samples or special materials. The POMEAS Focus X Laser Autofocus Microscopy System breaks through these traditional limitations with millisecond-level response times, micron-level precision, and the ability to maintain focus without drift, redefining the industrial microscopy experience.

Millisecond-level lightning-fast focusing doubles efficiency. Unlike traditional image-based scanning focusing, Focus X employs active laser ranging combined with closed-loop servo control. From trigger to precise focus, the entire process takes ≤0.4 seconds, with a focusing frequency of up to 5000 Hz—more than three times faster than traditional image-based focusing methods—eliminating the hassle and wait associated with manual focusing. Whether tracking high-speed moving wafers, flowing fluid particles, or vibrating precision structures, it provides real-time tracking, ensuring every frame is clear and blur-free. This significantly boosts batch inspection efficiency and enables stable 24-hour operation.

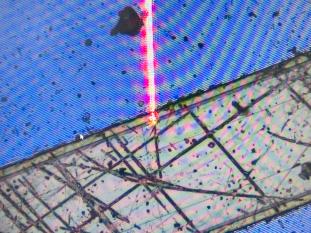

The secret to never losing focus lies in two cutting-edge technologies. First, coaxial laser ranging technology: a narrow-beam laser is projected coaxially through the objective lens onto the sample surface, and the reflected light is detected by a highly sensitive sensor. This directly calculates the actual distance between the objective lens and the sample, unaffected by lighting conditions, texture, transparency, or reflectivity. It ensures stable focusing on smooth metals, transparent films, and curved workpieces, with a focusing accuracy of ±0.1 μm. Second, the closed-loop intelligent control system features built-in high-speed algorithms and precision motion modules that compensate in real time for vibration, temperature drift, and sample tilt. Static samples remain permanently in focus once locked, while dynamic samples are tracked throughout the process without losing focus.

The non-contact, non-destructive design safeguards sample integrity. Traditional contact probes can easily scratch fragile samples such as wafers and flexible displays, whereas Focus X employs pure optical non-contact measurement—free from contact, pressure, or electrostatic damage—making it perfectly suited for high-end fragile samples such as flexible OLEDs, ultra-thin films, biological tissues, and wafer chips.

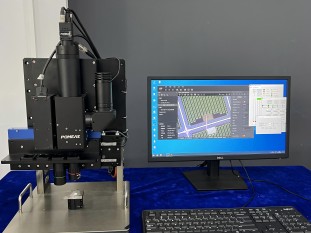

Its modular design offers greater adaptability, supporting 2×–100× universal APO objectives and a large ±15mm Z-axis travel range. With a 40% reduction in volume, it seamlessly integrates into existing equipment, offering plug-and-play functionality suitable for diverse scenarios including laboratories and production lines. From semiconductor inspection to materials research, and from precision electronics to manufacturing and processing, the Focus X helps reduce costs and improve efficiency with its ultra-fast, ultra-precise, non-destructive, and all-around capabilities.

Say goodbye to the hassle of repeated refocusing and unlock new levels of efficiency in microscopic observation. With its cutting-edge laser focusing technology, the POMEAS Focus X achieves millisecond-level precision and maintains focus throughout the entire process—ensuring every observation is stable, accurate, and fast—and injects new momentum into scientific research and industrial inspection!
