Telecentric Measurement Systems have revolutionized the measurement of threaded bottles, offering core advantages of efficiency, precision, and flexibility that perfectly meet the demanding requirements of modern production lines.

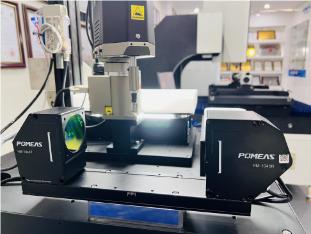

Traditional measurement methods rely on manual calipers or contact sensors, which are not only inefficient (taking several seconds per measurement) but also prone to data inaccuracies caused by operator error or contact deformation. In contrast, Telecentric Measurement Systems utilize non-contact optical imaging technology. By combining high-resolution industrial cameras with telecentric lenses, they can simultaneously capture the outer diameter, height, and contour of threaded bottles within 35 milliseconds—a speed more than 10 times faster than traditional methods—effortlessly handling high-speed production lines processing thousands of bottles per minute.

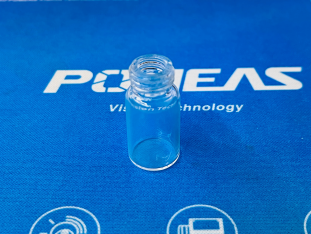

In terms of accuracy, the system employs sub-pixel edge detection algorithms combined with 0.001mm-level pixel calibration technology, limiting measurement error to within ±0.001mm with a repeatability of 0.0008mm—far exceeding the limits of manual measurement. Even when dealing with transparent glass bottles or reflective plastic bottles, the built-in lighting and adaptive threshold segmentation algorithms can accurately extract contours, preventing missed detections or misjudgments.

Flexibility is another key highlight. The equipment supports automatic switching between measurement programs, enabling quick adaptation to threaded bottles of various specifications (e.g., diameters of 20–100 mm and heights of 50–300 mm) without the need for repeated adjustments. Measurement data is transmitted in real time via Industrial Ethernet to a PLC or host computer and can be integrated into an MES system to enable quality traceability and SPC analysis. Furthermore, the non-contact design eliminates the risk of scratches on bottle surfaces associated with contact-based measurement, making it particularly suitable for high-end cosmetic and pharmaceutical packaging applications where cleanliness standards are extremely stringent.

From R&D validation to mass production, the Telecentric Measurement System redefines the standards for threaded bottle inspection with millisecond-level response times and micron-level precision, helping enterprises reduce costs, improve efficiency, and enhance product competitiveness. Choosing this system means choosing the efficiency and quality assurance of future smart manufacturing!
