Background of the Proposal

Metal ring washers are essential components in the fields of hardware manufacturing, mechanical assembly, electronics and electrical appliances, and automotive parts. They primarily serve to seal, cushion, prevent loosening, and distribute pressure; they reduce friction and wear between components and enhance the operational stability of equipment, making them indispensable parts in the assembly of various types of precision machinery.

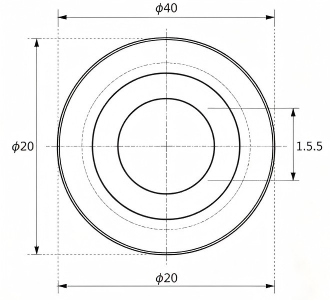

Measurement Requirements for Metal Gaskets

In the manufacturing process, metal ring gaskets are subject to strict dimensional control requirements, with key inspection criteria including inner diameter, outer diameter, and concentricity. Deviations in the inner and outer diameters can directly lead to assembly jamming and excessive clearance, while failure to meet concentricity standards can result in uneven stress distribution and seal failure, severely affecting the quality of the finished product. Therefore, these three parameters must be inspected with high precision.

Metal Gasket Measurement Solution: In-Line Projection Measuring System

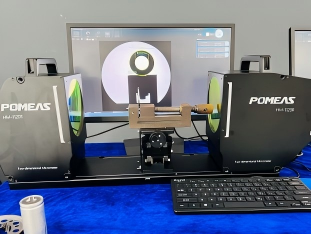

To address the need for batch quality inspection of metal ring washers, we have introduced the HM-1120 In-Line Projection Measuring System as a dedicated solution. With a measurement accuracy of up to 0.001 mm, this device fully meets the inspection standards for precision washers. It is easy to operate—users can complete the entire measurement process with minimal training—significantly reducing training costs. It also offers excellent measurement speed, making it suitable for in-line inspection on production lines. With a maximum workpiece measurement range of 120 mm, it can easily perform dimensional and concentricity inspections on the vast majority of standard metal ring washers, making it the preferred choice for improving quality and efficiency in the hardware washer industry.

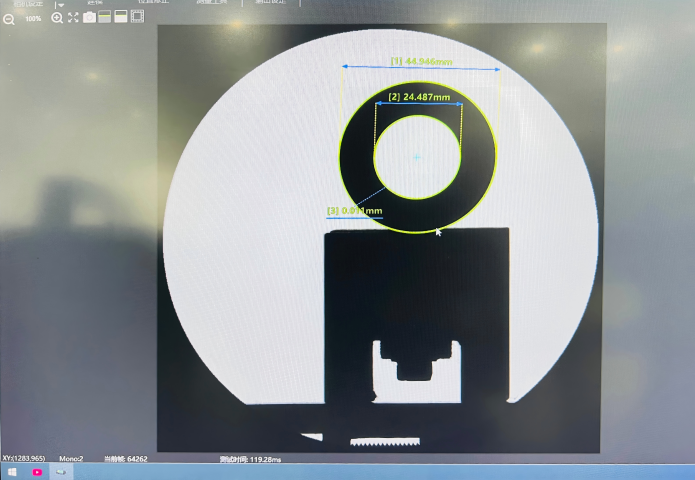

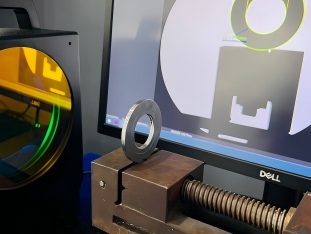

Metal Gasket Measurement Results
