In the fields of precision manufacturing and intelligent inspection, the diversity of inspection scenarios remains a core challenge for vision system integrators. A single piece of equipment often needs to handle multiple types of workpieces of varying sizes and precision levels—ranging from global positioning of large-area PCBs to micrometer-level inspection of chip pins and wire bonds. Traditional solutions either require frequent changes between multiple fixed-magnification lenses or force a compromise between measurement accuracy and field of view coverage.

The core technology of ZOOM LENSes lies in their ability to dynamically balance field of view and resolution through a continuously adjustable optical system, without the need to replace hardware. Among these, the 14X motorized zoom rail lens, with its ultra-wide zoom range of 0.55X–7.6X, takes the span between macro positioning and micro-inspection to new heights.

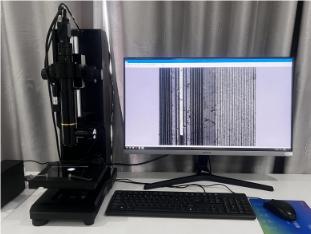

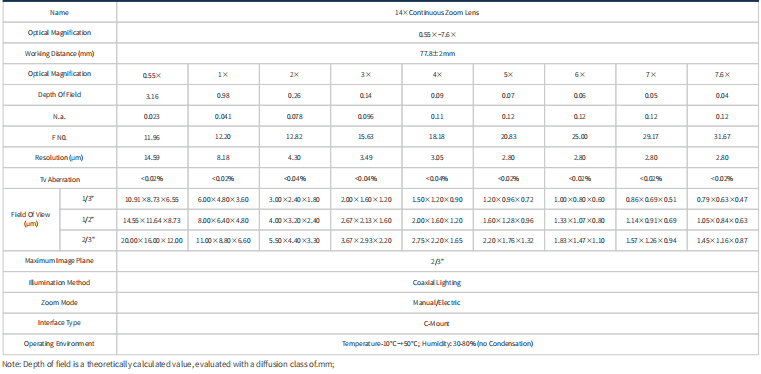

Key Specifications and Optical Performance

The 14X ZOOM LENS offers a zoom ratio of up to 14:1, supports 2/3-inch sensors, and has a working distance of 77.8±2 mm. At the low-magnification end, it provides a field of view of nearly 100 mm, making it suitable for quickly scanning the overall shape of workpieces and screening large areas for obvious defects; at the high-magnification end, it effectively magnifies the target object to a scale clearly distinguishable by the detector’s sensor, meeting the need for detailed observation of critical areas. The high numerical aperture design provides ample light transmission and resolution, and when paired with a high-resolution industrial camera, it is capable of supporting sub-micron precision measurement applications.

Ultra-low Distortion: A Prerequisite for Precision Measurement

Distortion is the primary factor affecting the accuracy of dimensional measurements. This lens employs multiple aspheric lens elements and high-precision assembly processes to keep distortion at an extremely low level, enabling the acquisition of high-precision raw image data without the need for additional distortion correction algorithms. This means that during algorithmic processing—such as edge detection, roundness measurement, and inter-spacing calibration—geometric distortion in the image does not introduce additional errors, and measurement results can be directly traced back to the true physical dimensions captured by the optical imaging system.

Absolute Zero Point Control: Ensuring Consistency in Reset Accuracy

In flexible production lines handling multiple product varieties in small batches, lenses must frequently switch between different magnification levels. The absolute zero-point control technology of ZOOM LENSes ensures consistent return to the zero-magnification position every time. High-precision stepper motors, combined with closed-loop feedback control, enable smooth, jerk-free magnification adjustment, eliminating the accuracy drift caused by friction loss in traditional zoom mechanisms.

Electrical Control and System Integration

The lens features a fully integrated motor control system and supports dual RS232/USB communication interfaces, enabling seamless integration with PLCs, industrial robots, or upper-level machine vision software. Using preset programs, the lens can automatically perform zoom adjustments and parameter recalls, increasing inspection speed by more than three times. Taking semiconductor packaging inspection as an example, the lens can switch from wide-angle observation of the bonding area to telephoto magnification of lead diameter and solder joint integrity within seconds, with a repeatability of ±0.01 mm, thereby eliminating human error associated with manual adjustments.

Typical Use Cases

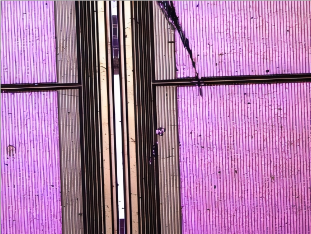

• Semiconductor Inspection: Wafer surface defect scanning, die wire bonding dimension measurement, and package coplanarity assessment

• 3C Electronics Manufacturing: Overall PCB positioning and component pad alignment inspection, and detection of micro-scratches on mobile phone mid-frames

• Automotive Component Measurement: Precision measurement of radial thickness and pitch for bearings and gears

• Biomedical and Research: Cell morphology observation and microscopic tissue section analysis
