In precision manufacturing, dimensional control of small plastic components is of paramount importance. With their high resolution and flexible magnification switching, continuous ZOOM LENS 4K lenses have become a reliable tool for microscopic dimensional inspection.

I. Features of 4K High-Definition ZOOM LENSES

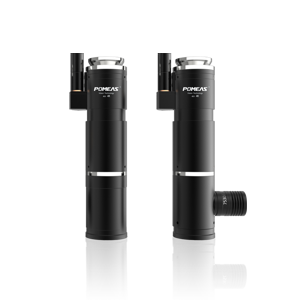

The 4K HD ZOOM LENS combines 4K ultra-high-definition imaging with stepless magnification adjustment. Its optical system is optimised for resolutions of 3840×2160 and above, providing four times the detail per unit area compared to conventional 1080p lenses, enabling the clear visualisation of minute flash, mould patterns and clamping lines on plastic parts.

The continuous zoom mechanism allows for smooth adjustment across the entire range from low to high magnification, whilst maintaining image clarity and minimising centre drift during the zoom process. Operators can perform both overall part positioning and detailed local measurements without the need to frequently change objectives. Furthermore, the lens incorporates broadband anti-reflective coatings and aspherical elements to effectively correct aberrations and distortion. The large numerical aperture ensures high resolution whilst providing ample depth of field; for small plastic parts featuring stepped structures such as bosses or grooves, this reduces the need for repeated refocusing and enhances inspection efficiency.

II. The Advantages of Using 4K Lenses to Inspect the Dimensions of Plastic Components

1. Significant improvement in inspection accuracy. Common tolerances for small plastic parts range from ±0.01 mm to ±0.05 mm; traditional lenses struggle to reliably detect such minute deviations. 4K imagery reproduces sharp edge contours, enabling accurate determination of whether dimensions are out of tolerance, and supports sub-pixel-level edge extraction via software, thereby achieving highly repeatable measurements.

2. Inspection efficiency has been substantially optimised. Continuous ZOOM LENS capability enables a single lens to cover all inspection requirements, from macro views to micro-details. For multiple dimensions across different parts of a component, there is no need to change lenses or recalibrate; simply adjusting the magnification is sufficient, significantly reducing the time required for batch incoming inspection. Furthermore, 4K resolution allows for a larger field of view at lower optical magnifications, enabling a single image to cover more areas and reducing the need for stage movement.

3. Adaptability to complex plastic materials. Plastic parts are often black, transparent or contain glass fibre, which can lead to issues such as reflections, low contrast or blurred edges. When paired with suitable illumination (such as coaxial light or backlighting), 4K lenses enhance the grey-scale contrast between parts and the background, enabling the stable extraction of edges on transparent parts or the contours of black parts, thereby providing a reliable image foundation for automated measurement.

By combining ultra-high resolution with flexible magnification switching, 4K high-definition ZOOM LENSes provide a solution that offers both precision and efficiency for the inspection of small plastic components. This helps to reduce errors in manual inspection and supports subsequent quality traceability and automation expansion.
