Online Digital Diameter Measuring Instrument PMS-LM-1030

The in-line digital sizer PMS-LM-1030 enables high speed and high accuracy measurements, and the measuring head's unique gallium nitride (GaN) green LED provides short wavelengths and reliable operat…

Online Digital Diameter Measuring Instrument PMS-LM-1030

  • Download now

    Products

    ——



            The online digital caliper PMS-LM-1030 has advanced optical technology, high-brightness green LEDs, and telecentric lenses and HL-CCDs on the receiving end to improve measurement speed, measurement accuracy and product durability.

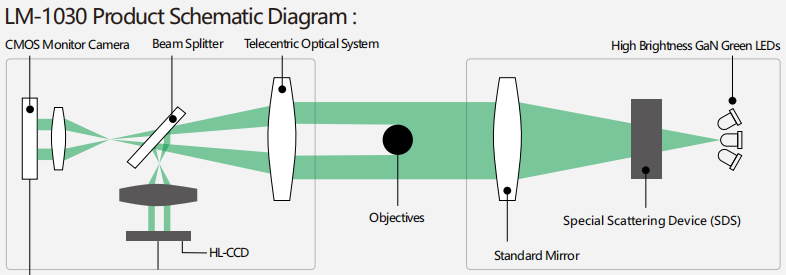

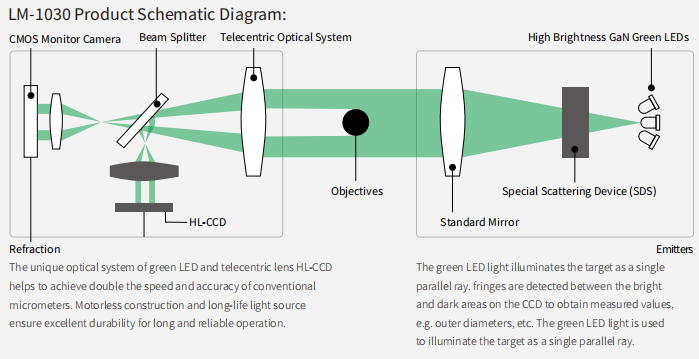

    PMS-LM-1030 product schematic diagram
    ——

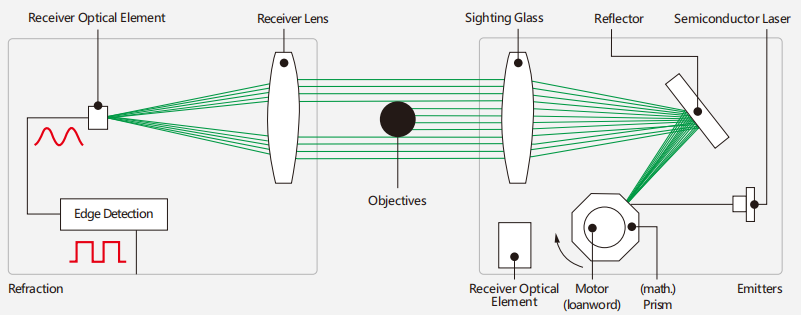

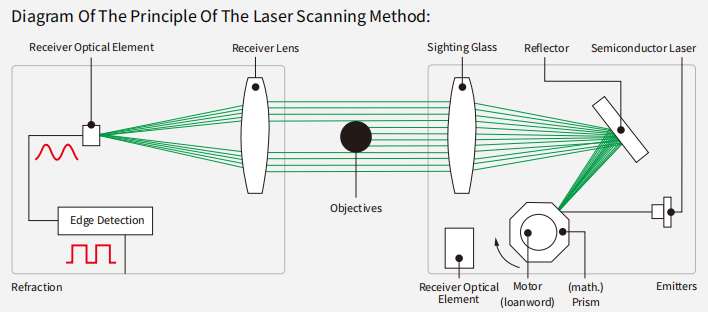

    Diagram of the principle of the laser scanning method:
    ——






    Multiple measurement functions support multiple tests
    ——



    Outer diameter measurement

    Dual-head measuring head mode: A special mode enables measurement of large diameter objects or large sheet materials without complicated calculations and other settings.



    Simultaneous measurement of the outer diameter and eccentricity of the copying cylinder

    Single-head simultaneous measurement mode: One measuring head can measure in two measurement modes at the same time, e.g. OD and eccentricity measurement.



    Measurement of IC lead spacing

    Measuring area design: The measuring area can be designed for inspection purposes, such as measuring IC lead gap or spacing.



    Checking the width or edge position of a glass plate

    Measurement of transparent objects: Even transparent objects that are difficult to detect with conventional micrometers can be measured; the edge detection level can be easily changed by the controller.



    Measurement of the outer diameter of optical fibers

    Trend display: Continuously measures the outer diameter of an optical fiber and displays not only the numerical value but also a trend graph representing the measured value as a waveform.



    Numerical value logging

    Data logging: The history of abnormal values, e.g. date/time, measured values and comparison results can be recorded in the controller's memory.

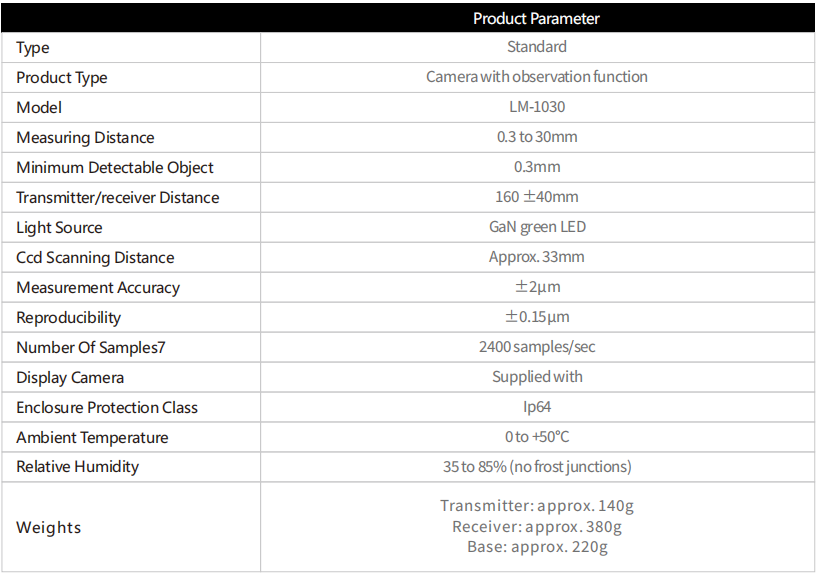

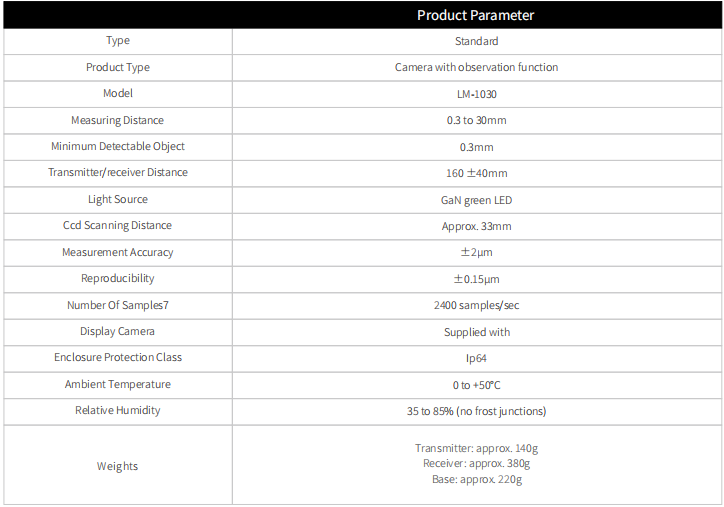

    PMS-LM-1030 Parameters

    ——
