HM-1040

Telecentric Measurement System HM-1040 standard model, to realize that put and measure, precision workpiece within 40mm can be measured, the measurement accuracy of 1μm, repeatability 0.8μm.

Telecentric Measurement System HM-1040

  • Download now

    Products

    ——



            The Telecentric Measurement System HM-1040 is a standard model that can measure precision workpieces up to 40 mm in size on the spot, with a measurement accuracy of 1 μm and repeatability of 0.8 μm. It is highly versatile for use in a wide range of industries, and provides faster and more accurate in-line intelligent dimensional inspection.





    Product Advantages

    ——



    1、Even if the workpiece has positional offset, it can be measured accurately;

    2、Ensure the accuracy of the whole field of view area;

    3、Applicable to a wide range of inspection tools for measuring items.

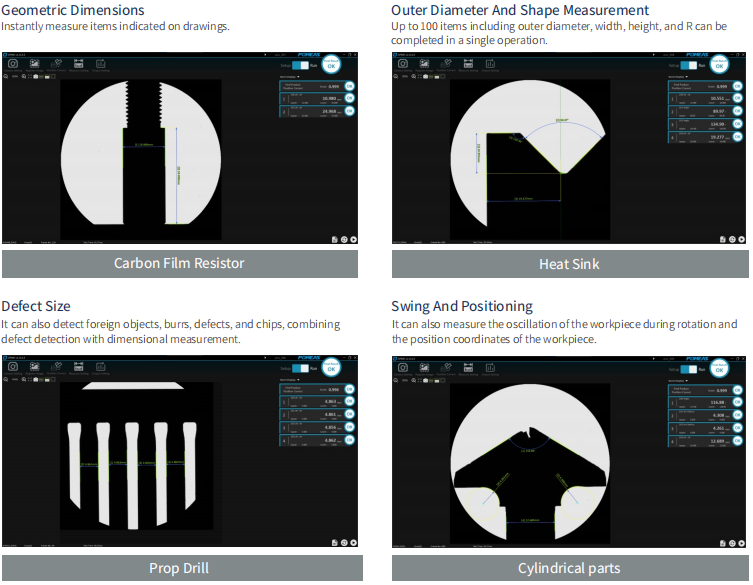

    Product Cases

    ——

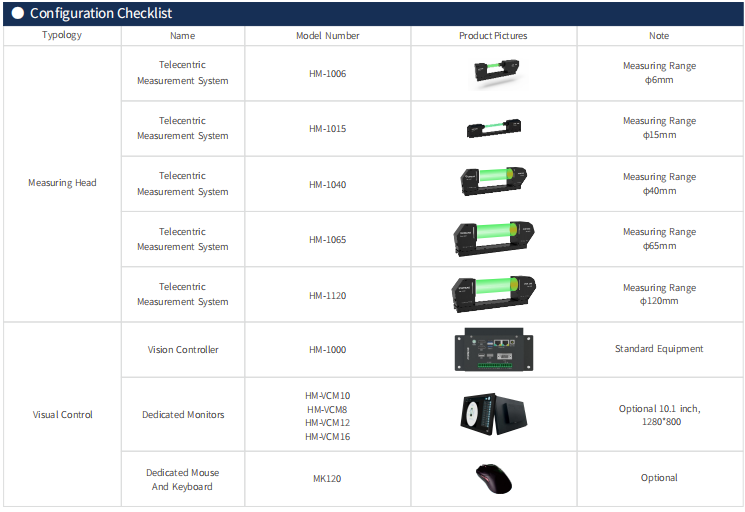

    Configuration list

    ——

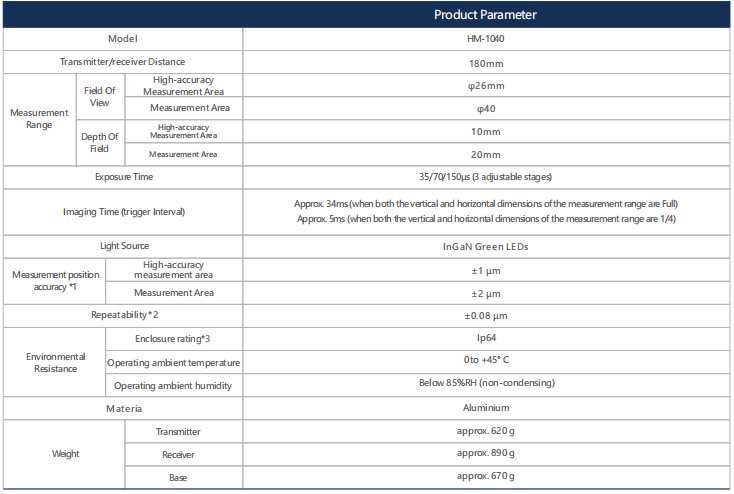

    Telecentric Measurement System HM-1040 Parameters

    ——
