HM-1065

Telecentric Measurement System HM-1065 large field of view models, to achieve the immediate release of the measurement, 65mm within the precision workpiece can be measured, the measurement accuracy...

Telecentric Measurement System HM-Series

  • Download now

    Products

    ——



            The Telecentric Measurement System HM-1065 has a large field of view and is capable of measuring precision workpieces up to 65 mm with an accuracy of 1.2 μm and a repeatability of 0.1 μm. It is highly versatile for use in a wide range of industries, and provides faster, more accurate, and intelligent in-line dimensional inspection.





    Product Advantages

    ——



    1、Even if the workpiece has positional offset, it can be measured accurately;

    2、Ensure the accuracy of the whole field of view area;

    3、Applicable to a wide range of inspection tools for measuring items.

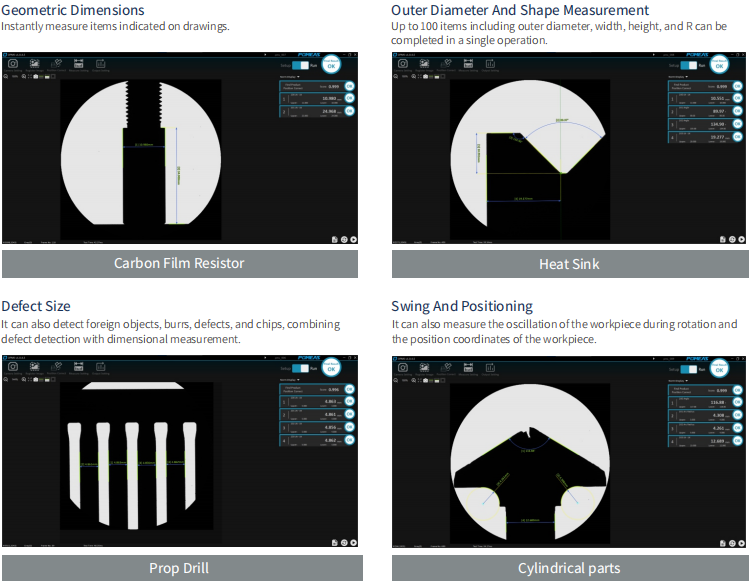

    Product Cases

    ——

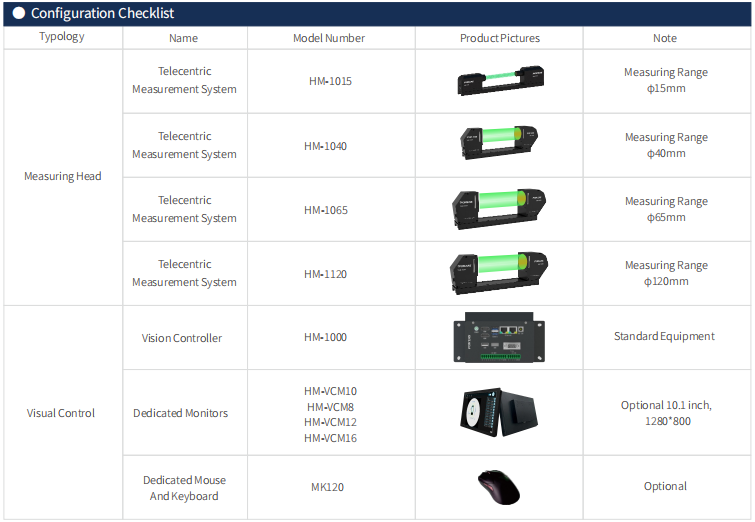

    Configuration list

    ——

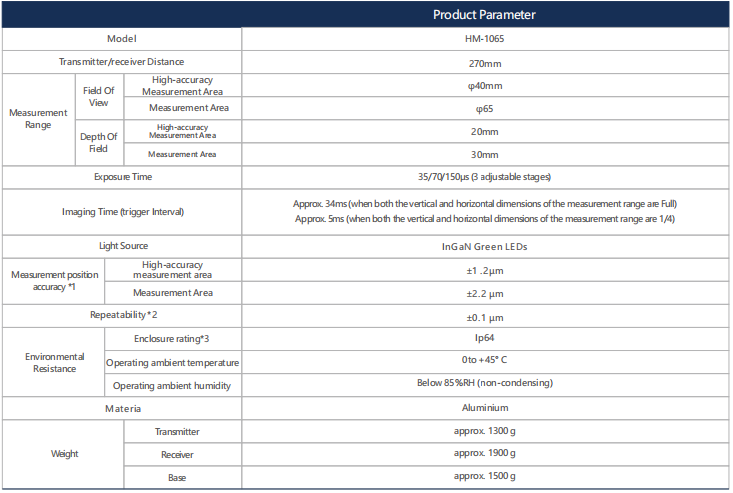

    Telecentric Measurement System HM-1065 Parameters

    ——
