HM-1120

Telecentric Measurement System HM-1120 large field of view model, to realize the immediate release of the measurement, 120mm within the precision workpiece can be measured, the measurement accuracy...

Telecentric Measurement System HM-Series

  • Download now

    Products

    ——



            The HM-1120 Telecentric Measurement System has a large field of view and is capable of measuring precision workpieces up to 120 mm with an accuracy of 2.5 μm and a repeatability of 0.2 μm, making it highly versatile for use in a wide range of industries, and providing faster, more accurate, and more intelligent in-line dimensional inspection.





    Product Advantages

    ——



    1、Even if the workpiece has positional offset, it can be measured accurately;

    2、Ensure the accuracy of the whole field of view area;

    3、Applicable to a wide range of inspection tools for measuring items.

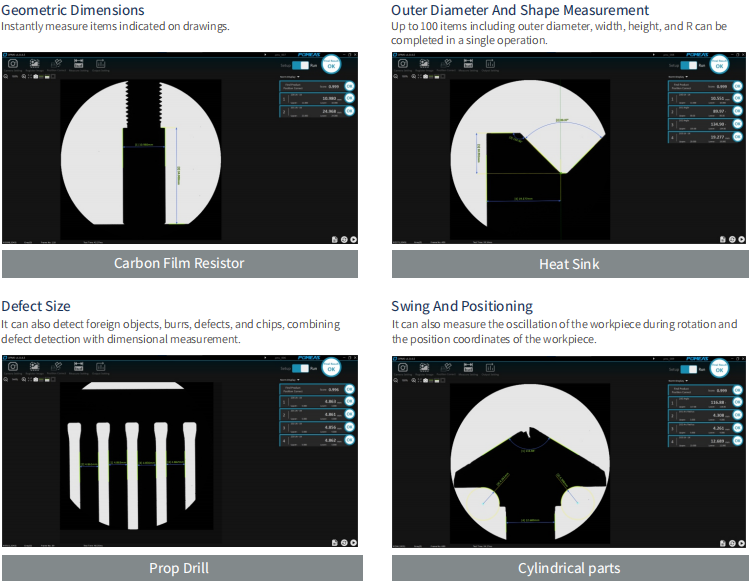

    Product Cases

    ——

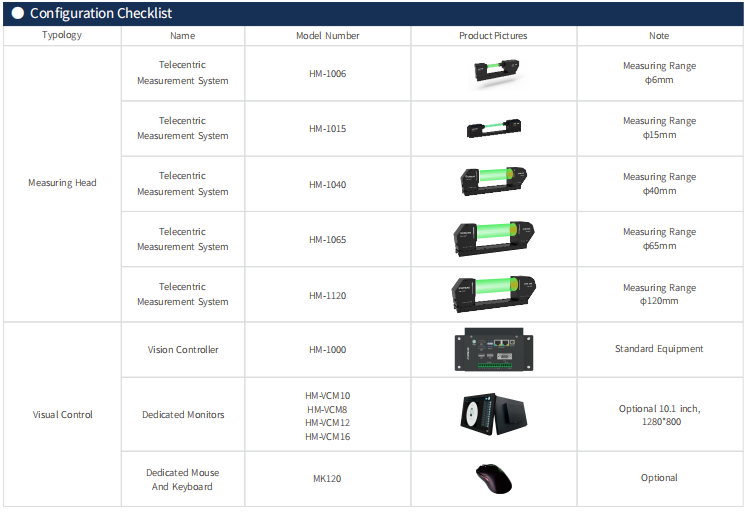

    Configuration list

    ——

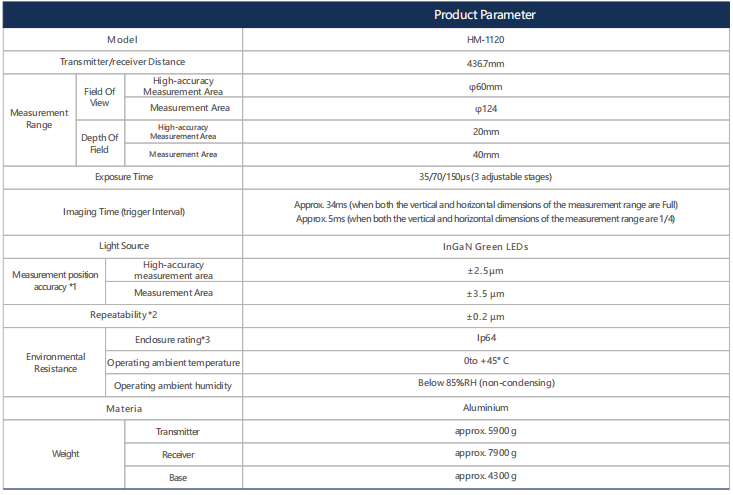

    Telecentric Measurement System HM-1120 Parameters

    ——
