Advantages of Telecentric Lenses for the Measurement of Large Workpieces

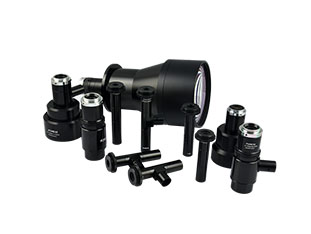

Telecentric industrial lenses are optical components with excellent imaging quality and precision, which are widely used in the measurement and inspection of large-sized workpieces. Compared with ordinary industrial lenses, telecentric lenses have the following advantages:



First of all, in the measurement of large-sized workpieces, it is necessary to have a large field of view and depth in order to cover a wider measuring range and to ensure the accuracy of the measurement results.Telecentric lenses, on the other hand, provide a larger field of view and depth of field, allowing full, efficient measurements to be taken without moving the workpiece and without compromising the results.


Secondly, telecentric lenses have better resolution and aberration control, which can effectively eliminate image distortion, chromatic aberration and distortion while ensuring measurement accuracy.This enables telecentric lenses to be specifically suited for demanding industrial measurement tasks in areas such as high-precision mold measurement and automotive body measurement.


In addition, telecentric lenses are characterized by a large aperture and high luminous flux, which allows more light to pass through to the inside of the lens, thus increasing the brightness and signal-to-noise ratio of the entire system.This is important for applications where measurements are made in darker environments, such as measurements of black materials, materials with uneven surfaces, and so on.


Overall, telecentric industrial lenses are one of the most important optical components in the measurement of large-sized workpieces and have an irreplaceable role in many fields.Its excellent imaging quality and accuracy can improve work efficiency and reduce work intensity under the premise of guaranteeing measurement accuracy, which in turn contributes to the progress and development of industrial production, quality assurance and other fields.
