Application of Image Measurement Instrument in Rubber Ring Dimension Measurement

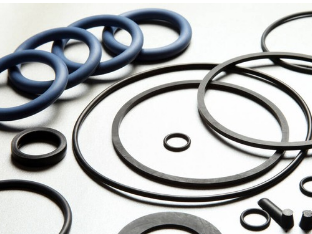

With the continuous development of industrialization, the use of various mechanical equipment is becoming more and more widespread.The rubber ring is a very important component in mechanical equipment.As a sealing material, the size of the rubber ring is directly related to the operating efficiency and safety of mechanical equipment.Therefore, it is essential to accurately measure the dimensions of the rubber ring.


However, the rubber ring material is soft and easy to deform, the traditional size measurement method is not only time-consuming and laborious, but also can not guarantee the accuracy.In recent years, with the continuous progress of image technology, the image dimension measurement instrument has gradually become the ideal choice to solve this problem.




Measurement requirements:


Measure the rubber ring circle and inner and outer diameter dimensions to determine whether they meet the assembly requirements.



Measurement Process:


First, place the rubber ring on the image dimensions measurement instrument's load table.Select the appropriate measuring range according to the product size and adjust the light source and other parameters.One-botton start after programming.The size of the rubber ring can be calculated by processing the image through the software.The whole process is simple and fast with high measurement accuracy.



In addition to their high level of accuracy, image measurement instruments are fast and can accomplish a large number of dimensional measurements in a short period of time.And the degree of automation is very high, which can greatly reduce manual intervention and reduce the error rate.

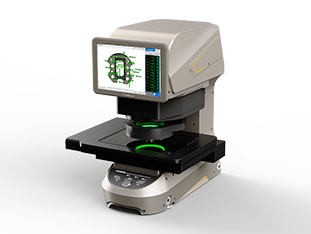

POMEAS IMAGE3 series of image dimension measurement instruments have a very important application in rubber ring dimension measurement.Its advantages of high accuracy, simple operation, speed and automation make it an indispensable measuring tool in modern industrial production.
