Board Size Inspection Vision Solution

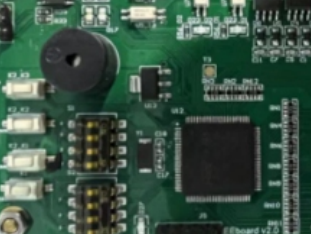

The board, a type of PCB, is a major part of the system's hardware components. The accuracy of the size of the board directly affects its assembly precision with other components. Board size inspection is important to ensure product quality, improve production efficiency and reduce production costs. In the production process, it is important to carry out strict dimensional inspection of the board to ensure that it meets the design requirements and the principle of interchangeability, so as to ensure the quality and performance of the product.



Test items:


Measure dimensions such as board caliper, size, roundness, flatness, and section difference to determine whether they meet standards.




Detection Guidelines:

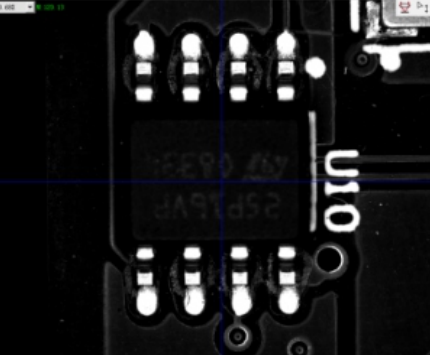

Use POMEAS 4K zoom high-precision and high-accuracy measurement components (vision + point spectrum) with MetX 3D measurement software. Quickly measure card details, especially pins and small holes for larger and clearer visualization with lens zoom.



Program Strengths:


1. The software can locate the product features, and subsequent accurate measurements can be made no matter how the product is placed in the field of view.


2.Adopting XYZ axis linkage scanning, more accurate acquisition and higher precision of acquiring size data.


3.4K zoom lens with high resolution features, high imaging clarity, can identify the edge of the small features.


4. The software operation is simple and easy to understand, the data is clear and intuitive, which is convenient for users to better observe and analyze.
