Application of Image Measuring Instruments in the Measurement of Cable Connectors




With the continuous development of science and technology, image measuring instrument, as a high-precision and high-efficiency measurement tool, has been widely used in many fields. In the measurement of cable connectors, image measuring instrument also shows its unique advantages.


Image measuring instrument is a kind of measuring equipment based on machine vision technology, which realizes the accurate measurement of object size by collecting, processing and analyzing the image of the measured object. Compared with traditional measuring tools, image measuring instrument is characterized by non-contact, high precision and high efficiency, especially suitable for the measurement of complex shapes and tiny dimensions.


As a key component in a cable system, the accuracy of the dimensions of cable connectors is directly related to the stability and safety of the cable system. Therefore, it is of great significance to carry out accurate dimensional measurement of cable connectors. Through measurement, it can ensure that the dimensions of the connectors meet the design requirements, avoiding problems such as poor connection and loosening caused by dimensional deviation, thus improving the overall performance of the cable system.



The application of image measuring instrument in the measurement of cable connectors:



1. non-contact measurement: the image measuring instrument adopts non-contact measurement mode, which can avoid damage or contamination to the cable connector, and at the same time ensure the accuracy and reliability of the measurement.


2. High-precision measurement: through high-resolution image acquisition and advanced image processing algorithms, the image measuring instrument can achieve micron-level measurement accuracy, to meet the high-precision requirements of cable connector size measurement.


3. automated measurement: the image measuring instrument supports automated measurement function, which can realize batch measurement of multiple connectors and greatly improve the measurement efficiency.


4. Data processing and analysis: the image measuring instrument also has a powerful data processing and analysis functions, can be statistical analysis of the measurement results, for the quality control of cable connectors and process improvement to provide strong support.

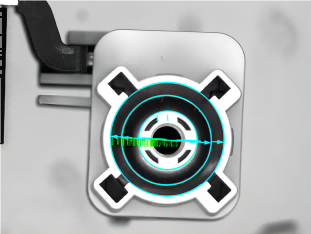

Detection effect diagram:



Compared with traditional measuring tools, POMEAS Image Measuring Instrument not only improves the measurement accuracy and efficiency, but also reduces the operation difficulty and labor cost, and improves the product quality and market competitiveness by analyzing the measurement data.
