POMEAS fully automatic image measuring machine (flash measuring machine) IMAGE 3 MAX2, the use of new research and development of high-precision dual-magnification double-side telecentric lens for the overall imaging, you can clearly observe the edges of the product that can not be observed without increasing the magnification, and to carry out more accurate dimensional measurements; equipped with a table navigation camera, you can observe the overall image while in use, to quickly confirm the measurement position, and can be observed in the platform of the target setup position, to shorten the time to quickly complete the measurement.

Fully automated image measuring machine (flash measuring machine) IMAGE 3 MAX2 realizes the advanced technology of "various measurements" with five features: navigation camera module, probe measurement module, spectral measurement module, high-precision double-magnification vision measurement module, and independent elevation of the variable illumination module.

1. Navigation camera module

Equipped with a workbench navigation camera, it can observe the overall image while in use, quickly confirm the measurement position, and observe the target setting position on the platform to shorten the time to complete the measurement quickly.

2.Probe Measurement Module

Equipped with the probe measurement module, it can perform three-coordinate measurement on three-dimensional targets, including the angle between the side of the product and the plane, and the measurement of the depth of the hole that cannot be irradiated by light.

3.Spectral measurement module

Equipped with spectral measurement module, it can realize high-precision and high-speed height measurement, and it can be completed in a short time when measuring multiple parts, which improves the working efficiency.

4.High-precision double-magnification vision measurement module

Equipped with newly developed high-precision double-magnification double-side telecentric lens, it can clearly observe the edges of the product that cannot be observed without increasing the magnification, and carry out more accurate size measurement.

5.Independently lifting variable illumination module

Dedicated independent lifting variable illumination module, equipped with zoned ring light, slit light, bottom light and built-in coaxial light, which can present the best imaging effect at any measurement position.

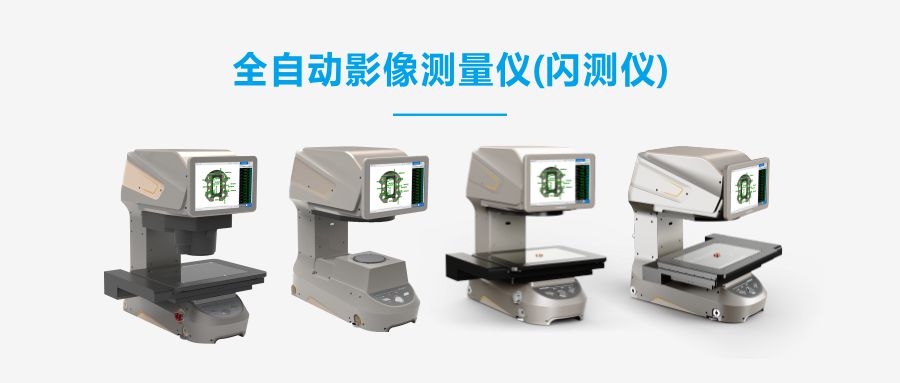

The wide range of models in the IMAGE 3 series of fully automatic image measuring instruments (flash measuring instruments) from POMEAS offers different measurement advantages, allowing you to choose the right measuring instrument model for your specific measurement needs and product characteristics.
