The precision manufacturing industry is placing ever-increasing demands on inspection efficiency and accuracy. Traditional coordinate measuring machines rely on manual point-by-point sampling, which can take several minutes per workpiece. When faced with the need for 100% inspection of large batches, the resulting labor and time costs become prohibitive. With their wide field of view, high-speed scanning, and intelligent capabilities, Telecentric Measurement Systems provide a highly efficient and reliable inspection solution for electronic hardware components.

High-resolution Optics System, Offering Greater Accuracy and Stability

Conventional lenses suffer from perspective errors, which can cause distortion in the contours of workpiece edges and affect measurement accuracy. Telecentric Measurement Systems utilize high-resolution optical systems that offer constant magnification and extremely low distortion. They are unaffected by changes in workpiece height within the depth of field, capturing true contour dimensions and ensuring highly consistent measurement data. Clear imaging is achieved without the need for frequent refocusing, significantly improving operational efficiency.

Plug and Play, Full-Size Results in Seconds

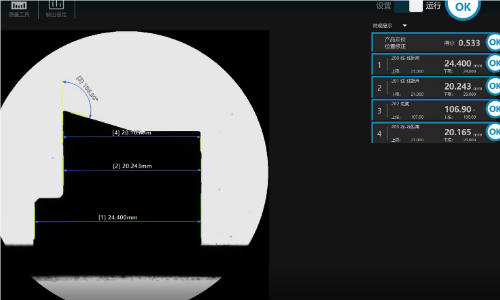

Place the workpiece on the stage, and all 2D dimensions—including diameter, spacing, curvature, and positional accuracy—are output in a single pass within one second. These parameters are collected simultaneously and automatically classified as Pass or Fail. No programming experience is required; operators can quickly get up to speed with minimal training, significantly reducing human error and truly achieving efficient operation with “place-and-measure, measure-and-judge” capabilities.

Wide Range of Industry Applications

The equipment is suitable for a wide range of precision manufacturing applications:

• 3C Electronics: Small precision structural components such as connectors, card holders, and Type-C ports;

• Precision Metalwork: Stamped terminals, springs, CNC-machined parts, and powder metallurgy components;

• Plastic Components: Injection-molded parts such as precision gears, light guides, and connectors.

Whether the product has a regular or irregular shape, the system can automatically recognize the workpiece contour and quickly complete template matching, meeting the rapid changeover inspection requirements of flexible production involving multiple product varieties and small batches.

Production-line-ready Design, Stable Operation in On-Site Environments

The equipment is designed with the workshop environment in mind and features strong resistance to vibration and ambient light interference. It can be deployed alongside machinery such as stamping and injection molding machines to enable full in-line inspection during the manufacturing process, promptly identifying defective products and preventing batch defects, thereby providing proactive assurance of production quality.

Intelligent Data Management, End-to-End Quality Traceability

The system supports drawing comparison, custom tolerance templates, and SPC (Statistical Process Control) analysis. Measurement data can be automatically compiled into reports and uploaded to the MES system, enabling closed-loop management that extends from single-dimension inspection to end-to-end quality control, thereby providing data support for process optimization and continuous improvement.

Value Proposition: Balancing Efficiency and Returns

A Telecentric Measurement System can replace the repetitive dimensional measurement tasks performed by multiple quality inspectors, effectively alleviating practical challenges such as recruitment difficulties and high training costs. More importantly, by implementing 100% in-line inspection, defects can be detected and addressed early, thereby avoiding the even greater losses associated with batch scrapping and customer complaints leading to returns.

As a company with deep expertise in industrial lenses and machine vision, POMEAS is committed to providing proven and reliable products and solutions. If you have precision measurement needs, please feel free to contact us so we can work together to develop an intelligent inspection solution tailored to your production line.
