I. Key Features of Telecentric Lenses

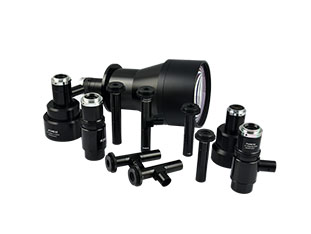

Telecentric lenses are specialized optical lenses designed specifically for high-precision vision applications. Unlike standard industrial lenses, they possess three core characteristics that form the foundation of their suitability for measurement scenarios.

1. Parallax-free performance: The lens’s optical path is specially designed to eliminate the perspective distortion—where objects appear larger up close and smaller at a distance—that is common in standard lenses. Minor forward or backward shifts in an object’s position do not cause deviations in the image size.

2. Exceptional imaging consistency: Across the entire field of view, the magnification ratio remains completely uniform from the center to the edges of the image, eliminating issues such as magnification distortion and edge blurring, resulting in uniform and clear imaging.

3. Low distortion and high-fidelity imaging: With an extremely low optical distortion rate, these lenses faithfully reproduce the true contours, dimensions, and shapes of objects, thereby eliminating imaging errors at the source.

II. Key Requirements for Industrial Measurement Lenses

In applications such as industrial dimensional measurement, defect detection, and precision alignment, the core requirements for lenses have never been high-definition or aesthetic appeal, but rather accuracy, stability, and reliability—standards that ordinary lenses struggle to meet.

First, perspective errors must be eliminated. Variations in workpiece height and slight vibrations or displacements are common in industrial settings; the lens must not allow measurement data to fluctuate due to minor positional changes.

Second, magnification must be uniform and free of deviation. When measuring different locations on the same workpiece or the same points across a batch of workpieces, consistent magnification must be ensured to prevent local data distortion.

Third, imaging must feature low distortion and high stability to accurately capture fine details such as edges, corners, apertures, and gaps on workpieces. It must also be suitable for long-term batch inspection, ensuring high data repeatability and reducing the costs associated with manual calibration and error correction.

Fourth, the system must support high-precision quantitative output. Imaging performance must align with the requirements of vision algorithms to ensure the accuracy of measurements for dimensions, distances, areas, and other data.

III. Key Reasons Why Telephoto Lenses Are the Top Choice for Measurement Solutions

Standard industrial lenses are designed for general-purpose imaging and suffer from unavoidable perspective distortion and magnification errors, making them suitable only for routine visual inspection and completely unsuitable for high-precision measurement applications.

In contrast, the core characteristics of telecentric lenses precisely address the critical requirements of industrial measurement: zero perspective error, consistent magnification, low distortion, and high stability. They resolve industry pain points such as imaging deviations, inaccurate data, and poor repeatability at the optical source.

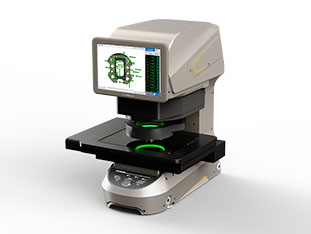

Whether for dimensional measurement of precision hardware, electronic components, or plastic parts, or for the detection of minute defects, hole diameters, and alignment deviations, telecentric lenses maximize measurement accuracy and data stability, significantly improving inspection efficiency and yield rates. This is the primary reason they have become the standard choice for various high-precision vision measurement solutions.
