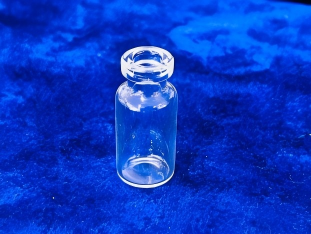

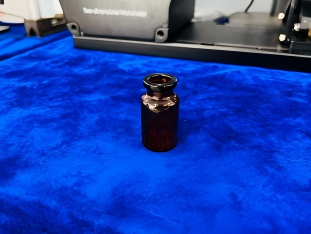

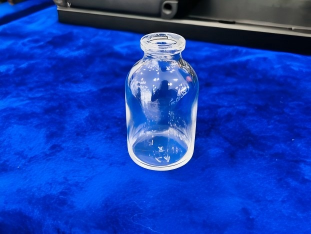

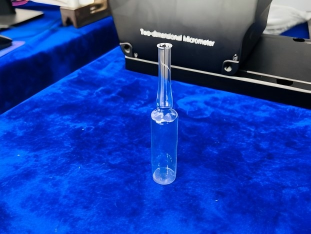

In the manufacture of medical supplies, the dimensional accuracy of packaging containers such as ampoules, vials, antibiotic bottles and screw-top bottles directly affects subsequent filling and sealing processes, as well as medication safety. Traditional manual spot-checking is inefficient and prone to omissions, and cannot meet the requirements for 100 per cent inspection on high-speed production lines.

The POMEAS Telecentric Measurement System utilises a telecentric optical system and intelligent vision algorithms to achieve non-contact, high-speed, in-line measurement with micrometre-level accuracy, providing a reliable solution for full-dimension inspection of medical packaging.

High-efficiency full inspection with simultaneous output of multiple sizes

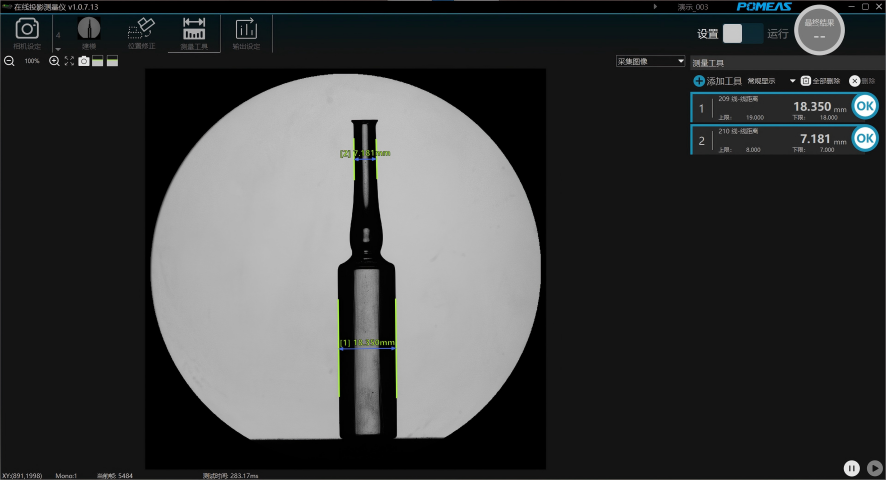

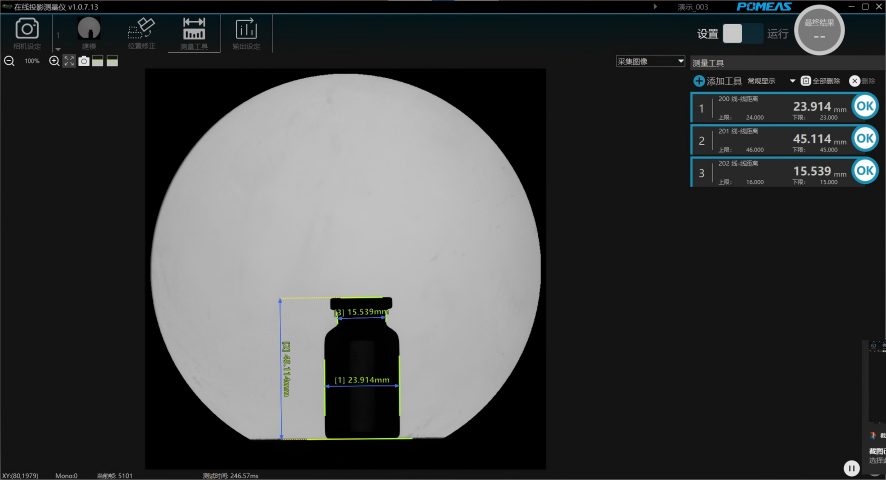

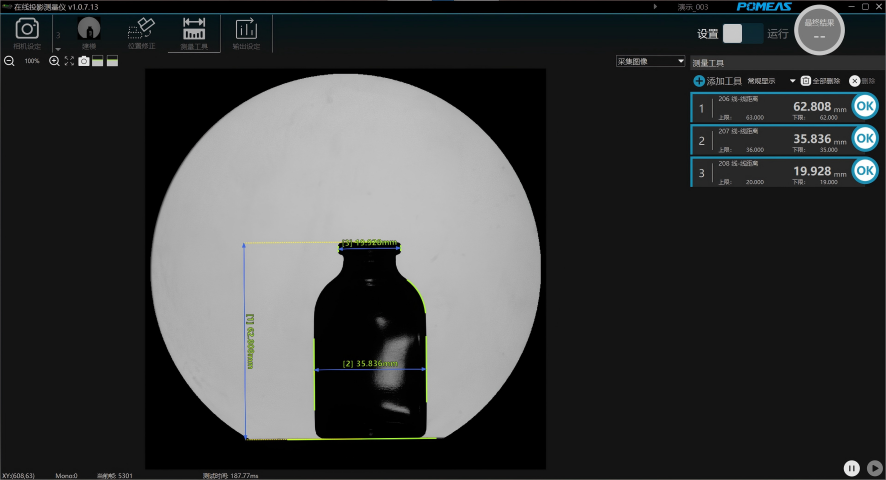

The system can measure multiple parameters—including the outer diameter, height, inner diameter of the neck and wall thickness—in a single operation. For different bottle types, such as ampoules and vials, it supports one-click switching between inspection templates, with changeover times not exceeding 30 seconds, thereby significantly enhancing production line flexibility.

High-speed online operation, seamlessly integrated into the production line

The equipment supports continuous inspection of hundreds of medical vials per minute, with response times measured in milliseconds. Measurement data is uploaded in real time to the MES system, which automatically rejects non-conforming products and provides SPC trend analysis, helping companies to receive early warnings of dimensional drift and reduce defect rates at source.

The Telecentric Measurement System safeguards the break strength of ampoules, the seal integrity of vials and the capping torque of screw-cap bottles with micrometre-level precision. Through closed-loop feedback of 100 per cent inspection data, it helps companies make the transition from ‘post-production spot checks’ to ‘in-line 100 per cent inspection combined with process prevention’.
