Background

In the field of optical communications, stable signal transmission and efficient coupling are of paramount importance. As a specialized type of optical fiber, tapered-core fiber has become a critical component in optical communication systems due to its core advantages of high coupling efficiency and low back reflection. However, precise testing is essential to ensure that its performance meets specifications.

Customer Testing Scope

The customer requires rigorous inspection of beveled lens fibers, necessitating the use of a high-definition, high-precision microscopic system to magnify lens fibers with diameters of less than 0.1 mm and capture clear images of the fiber ends. Third-party software is then used to perform precise dimensional measurements of the bevel angles, thereby ensuring stable and efficient optical signal transmission in optical communication applications.

Challenges in Testing

When dealing with such tiny products, traditional microscopic vision systems often fail to meet the required magnification and clarity standards. Furthermore, since manufacturers of microscopic lenses typically do not provide high-precision measurement software, customers are forced to collaborate with multiple suppliers to complete their projects. This not only increases the risk of coordination issues but also makes post-sales support extremely cumbersome, severely hindering the progress of inspection work.

Solutions

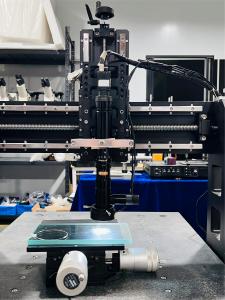

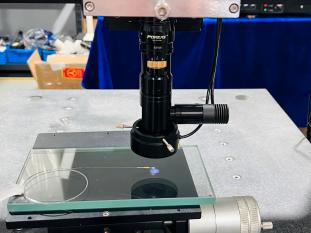

By selecting the POMEAS MetX multi-sensor measurement system and securely mounting the fiber optic products on the platform, users can complete inspections quickly with a single click and view the dimensional results at a glance, bringing significant convenience to inspection processes in the optical communications field.

Features of the Solution

• The MetX multi-sensor measurement system features an optical zoom range of 1.4X to 9X, offering high magnification and broad coverage to easily meet various inspection requirements;

• Its professional optical design seamlessly combines high resolution with high magnification, ensuring clear and sharp images;

• The compact structural design facilitates easy integration and installation, saving space and simplifying operation;

• The coaxial epi-illumination combined with ring illumination completely eliminates shadows, clearly reproducing the fiber profile;

• The MetX Multi-Sensor Measurement System’s software is simple to operate yet powerful, enabling precise measurement of fiber angle dimensions.

Application Results

This measurement system offers high accuracy, excellent stability, and good repeatability, with outstanding long-term consistency, providing a reliable guarantee for stable optical communication transmission.

• The system features strong interference resistance and excellent environmental adaptability, maintaining reliable output even under complex operating conditions to ensure that testing is not affected by external interference.

• The measurement process is highly automated and easy to operate, significantly reducing human error and markedly improving testing efficiency.

• Data is real-time, accurate, and traceable, fully meeting the stringent requirements for quality control and traceability in the optical communications field.

• We provide comprehensive hardware and software solutions with guaranteed quality, ensuring safe and reliable use for our customers.
