Rapid Battery Size Measurement Solution

share:

2023/12/13

author:adminBOSS

Measurement needs:

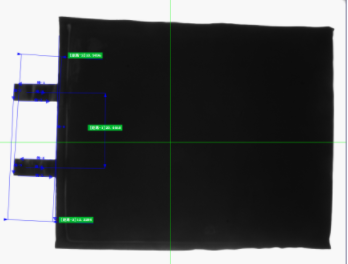

Detect the appearance dimensions of lithium battery, including length, width, lug spacing, lug edge distance, battery thickness and other dimensions.





Measurement Solution:

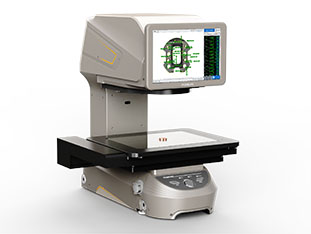

Use POMEAS IMAGE3 series image measuring instrument to achieve fully automatic and rapid measurement of lithium battery dimensions.





Solution Advantages:



1. One-button detection: incorporating the principle of one-button flash measurement, press one button to measure the shape of the battery and the size of the electrode lugs, combined with the tolerance module, it can automatically determine the good and defective products, to meet the needs of automated inspection.





2. High measurement accuracy: repeatability of dimensional inspection ±1μm.





3. Fast detection efficiency: large field of view, fast detection speed, can measure more than 50 dimensions in 1 second.





4. automatic defect filtering: when the measurement position contains burrs or defects, the system can automatically identify and exclude the anomalies to improve the accuracy of the measurement.





5. Operation interface: the operation interface is simple, convenient, beautiful and easy to use.

TECHNICAL SOLUTION
