IMAGE3 series Image Measuring Instrument

Test 50 sizes within 1 second, eliminating human error, anyone can get the same measurement results, one-key measurement, one-key output report

Optics General Catalog

  • Download now





    Product Introduction

    ——

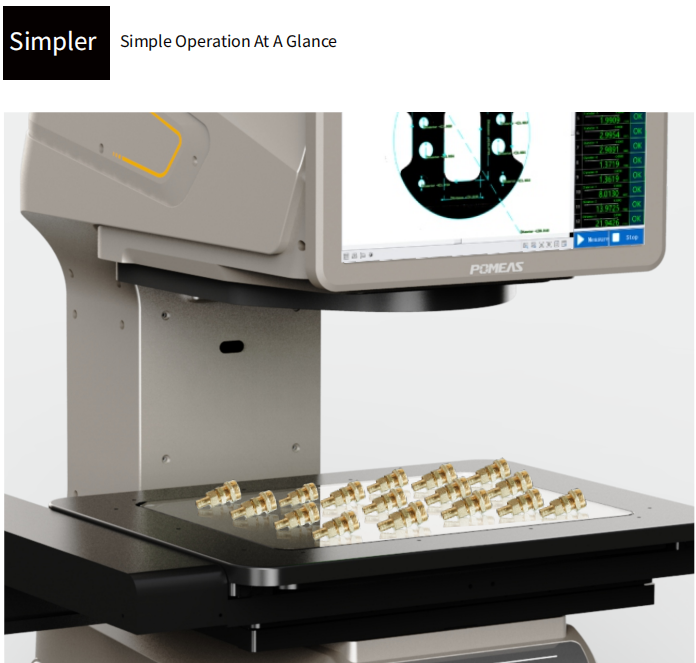

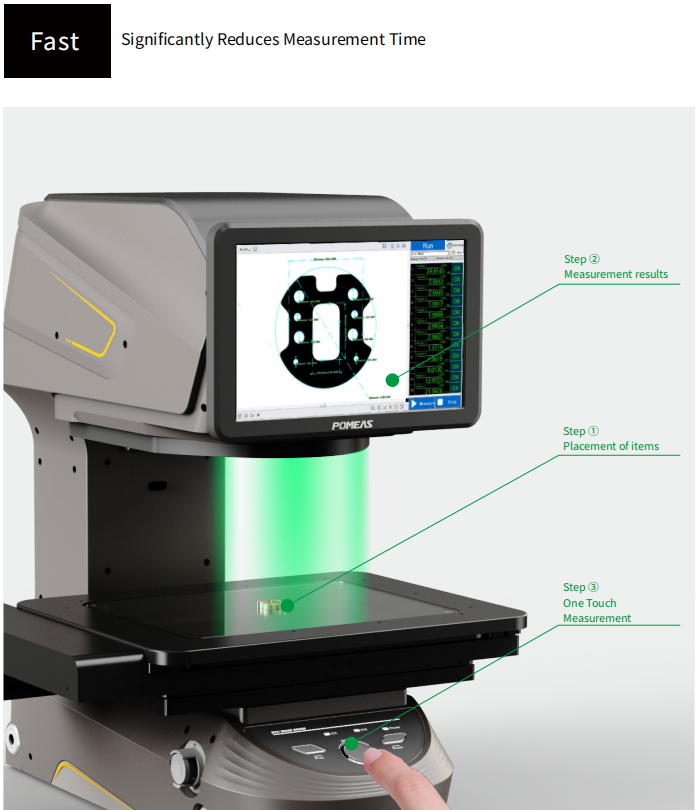

    Quick measurement



    The product within the field of view can be measured with one click.



    easy to use



    The system operation interface is simple and easy to understand. Anyone can obtain accurate detection results by simply clicking the button on the screen.



    Automatic management of measurement results



    When the measurement is completed, the measurement result is automatically saved, and the test report can be generated with one click of a button.







    Product Advantage
    ——



    1. Intelligent measurement in real sense is realized, and the new function of "measuring with one key after placement" is realized. Simple size measurement does not need to be set. Like vernier or micrometer, it can learn to operate in a few minutes.



    2. Measurement results are automatically stored in the host computer, and can be measured by date, item, batch number surveyor, etc. Information searching makes data traceability management easier.



    3. Test results report and statistical report can be made by one key, without the tedious process of data transmission and computer input. It is very simple to output measurement data with EXCEL form and PDF.



    4. In large field measurement, the field of vision can reach 130 mm*97.8 mm, which can be used for one-time whole imaging, and can measure multiple sizes simultaneously. Even if the measuring position is increased, the measuring time will not be spent.



    5. Eliminate the artificial error. It can focus automatically according to the measuring position and carry the function of adjusting the intelligent light source. Whoever makes the measurement can measure the size under the same conditions at any time, which can avoid the measurement error caused by different lighting conditions.



    6. The software adopts AI vision technology developed independently, and uses CNN neural network and deep learning function, which can make the measurement more accurate and precise.







    Application Fields

    ——

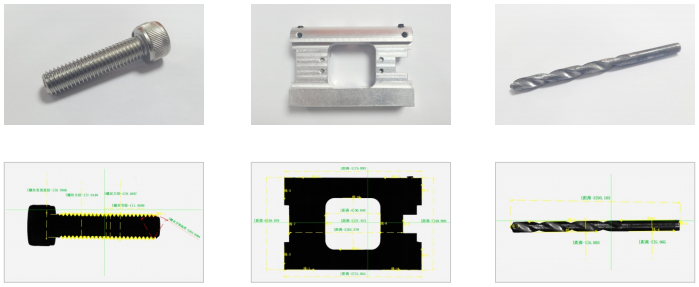

    It is very suitable for measuring distance, radius, angle, radian and other dimensions. Suitable for industries such as electronics, mechanical processing, hardware, plastic processing, and automobiles. Common workpieces include stamped and molded parts, injection molded parts, or laser cut parts.

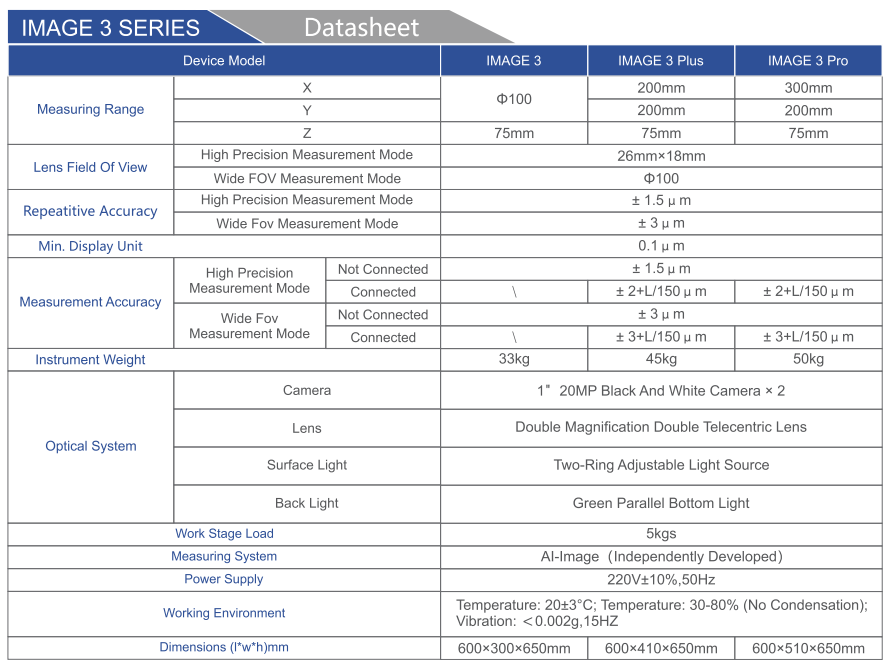

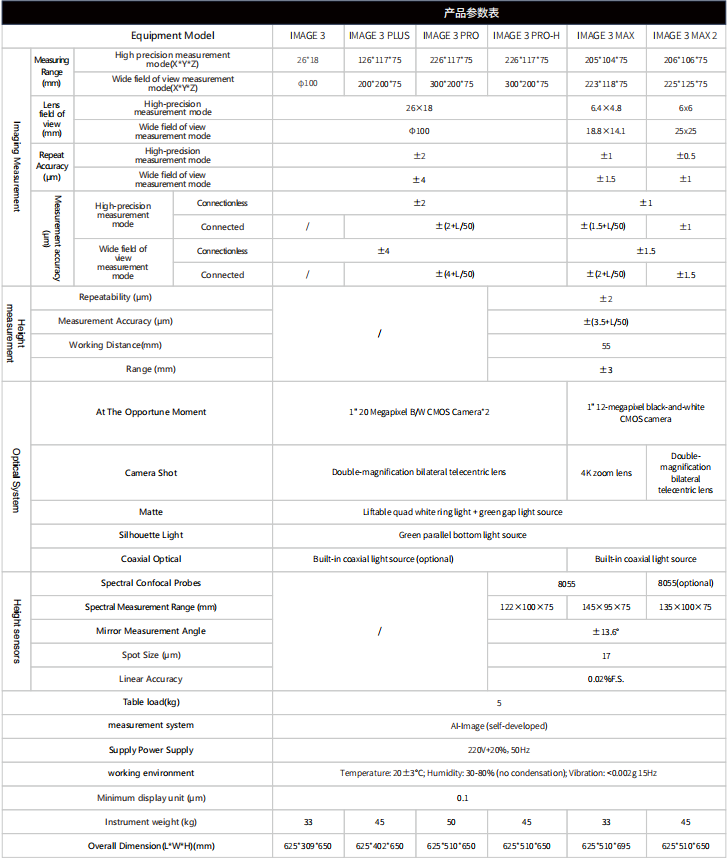

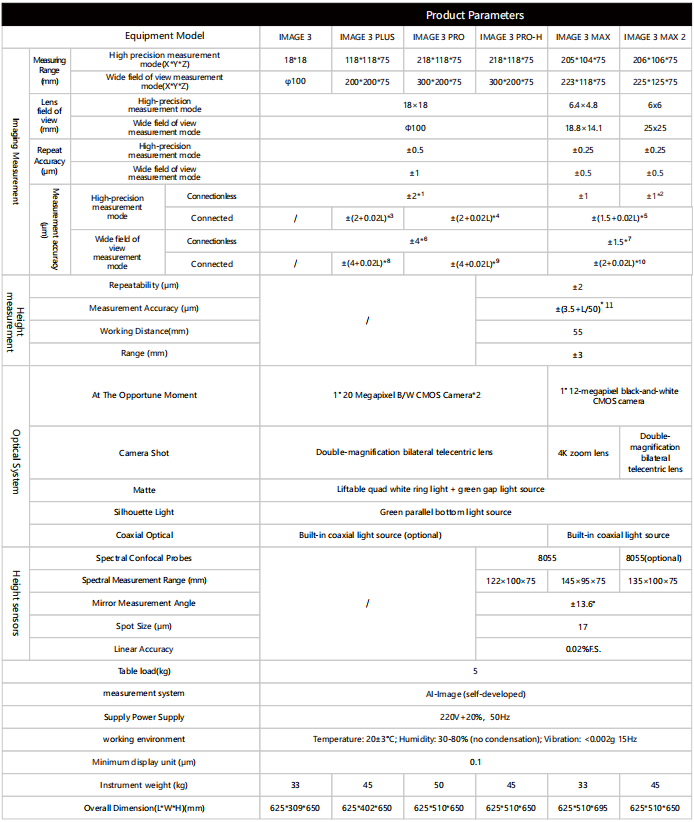

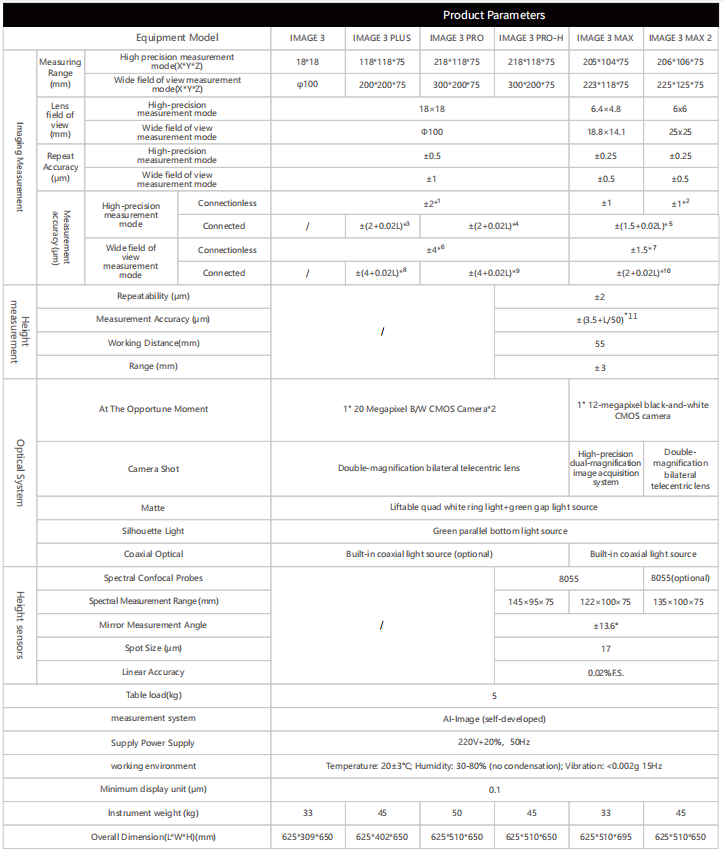

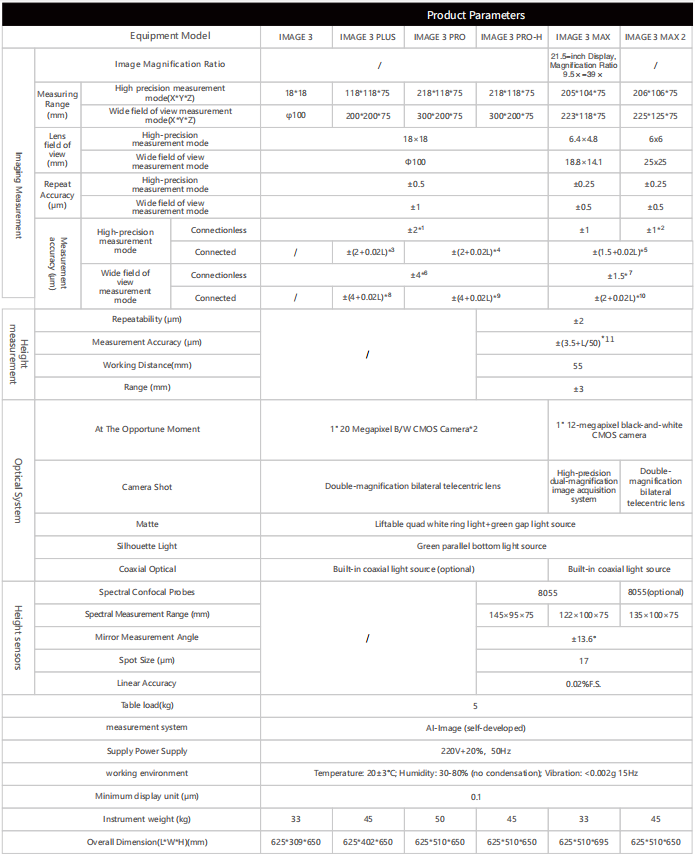

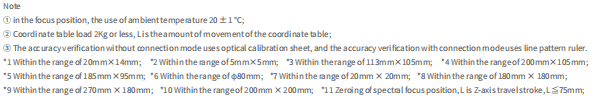

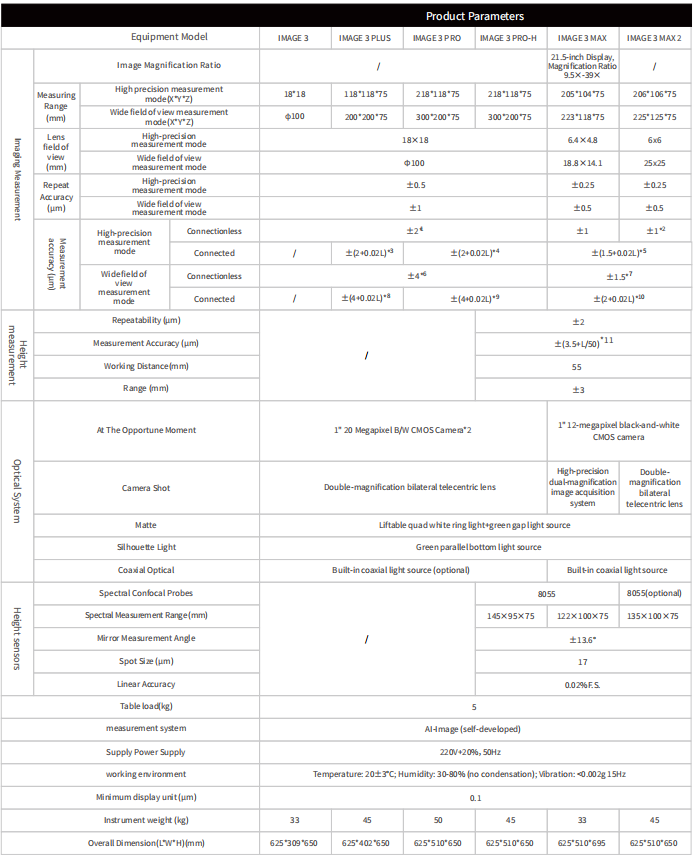

    IMAGE3 series Image Measuring Instrument  Parameter

    ——
