IMAGE3 MAX  Image Measuring Instrument

equipped with POMEAS 8055 point spectral confocal sensor to measure the height, complete the detection of 50 dimensions within 1 second, eliminate human errors, and anyone can get the same measuremen…

Optics General Catalog

  • Download now

    Product Introduction

    ——



    Quick measurement

    The product within the field of view can be measured with one click.



    Easy to use

    The system operation interface is simple and easy to understand. Anyone can obtain accurate detection results by simply clicking the button on the screen.



    Automatic management of measurement results

    When the measurement is completed, the measurement result is automatically saved, and the test report can be generated with one click of a button.







    Product Advantage

    ——



    Quick measurement



    Accurate measurement





    Easy to use









    Application Fields

    ——



    It is very suitable for measuring distance, radius, angle, radian and other dimensions. Suitable for industries such as electronics, mechanical processing, hardware, plastic processing, and automobiles. Common workpieces include stamped and molded parts, injection molded parts, or laser cut parts.

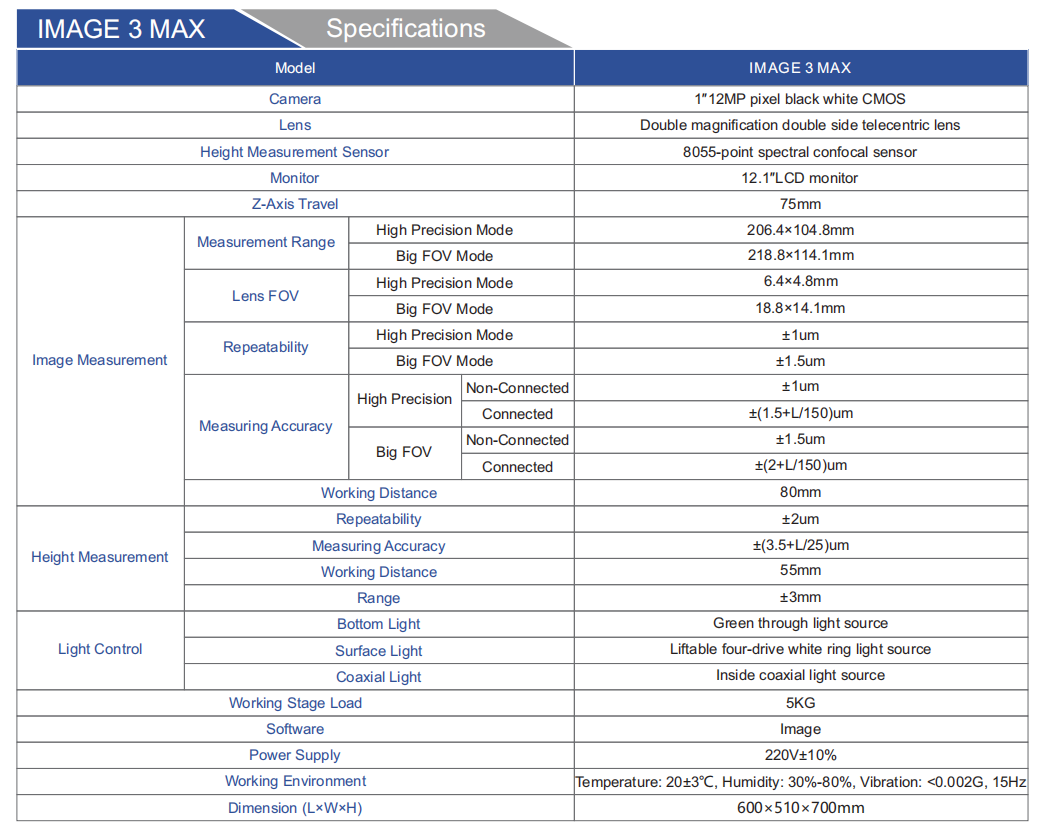

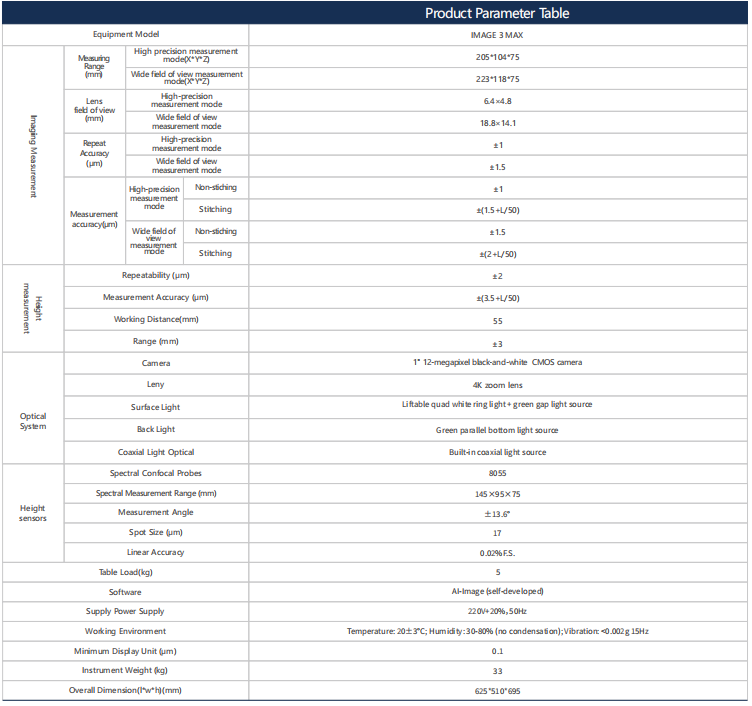

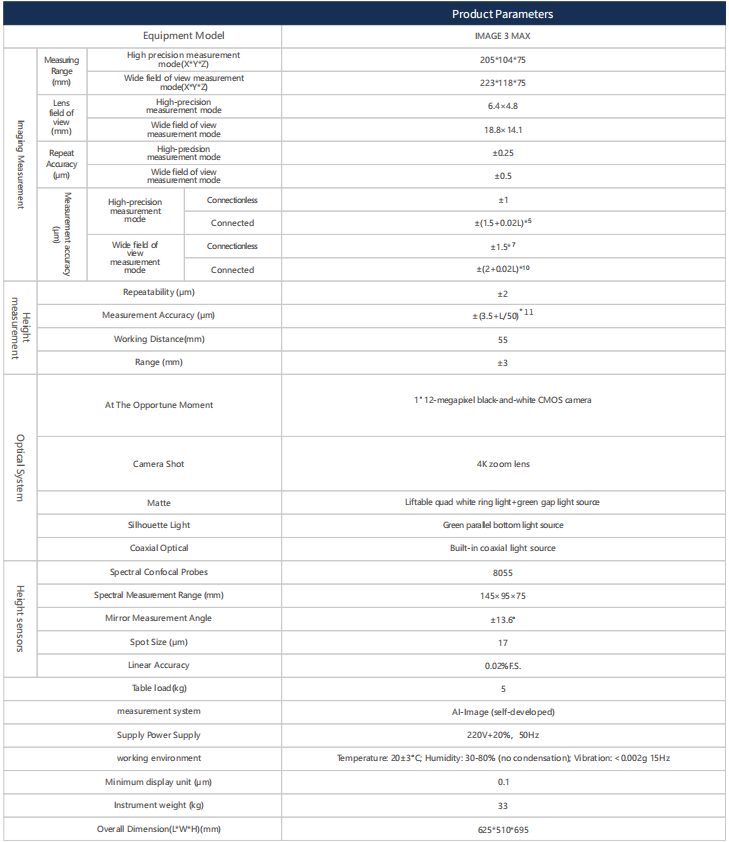

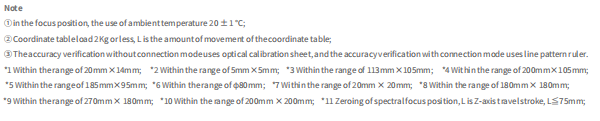

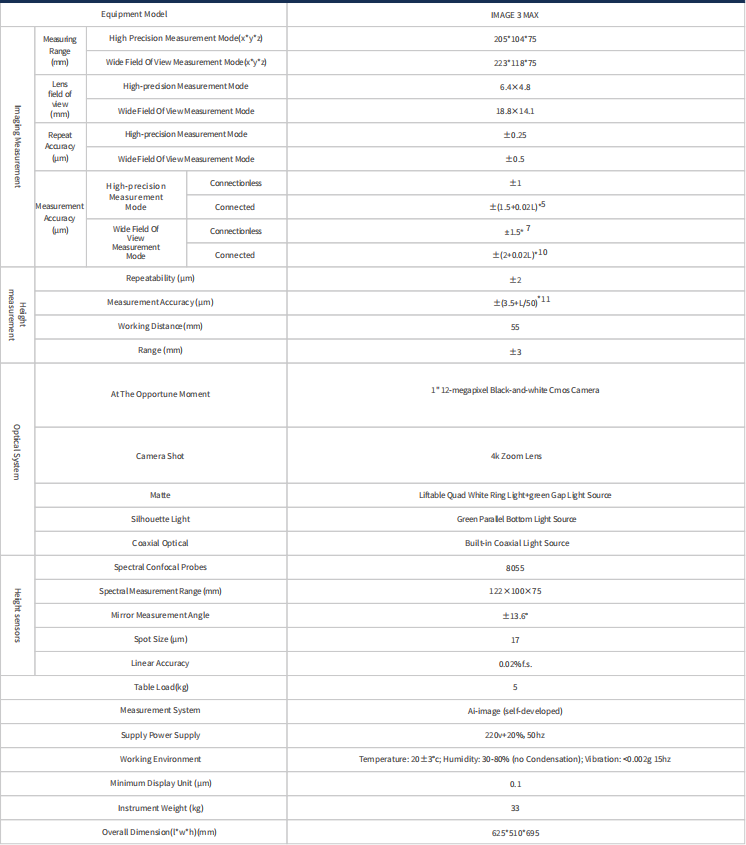

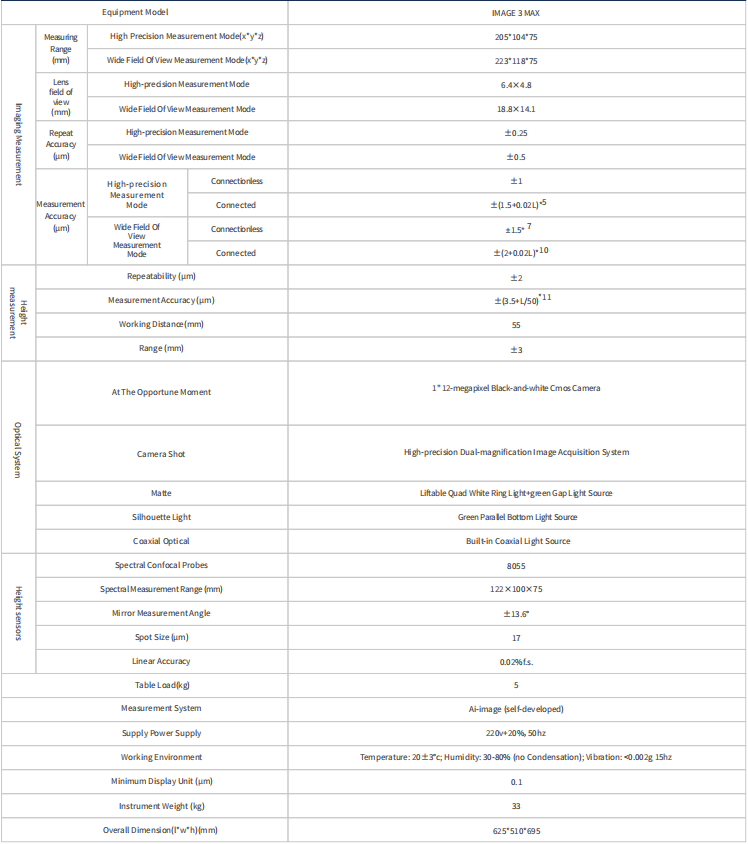

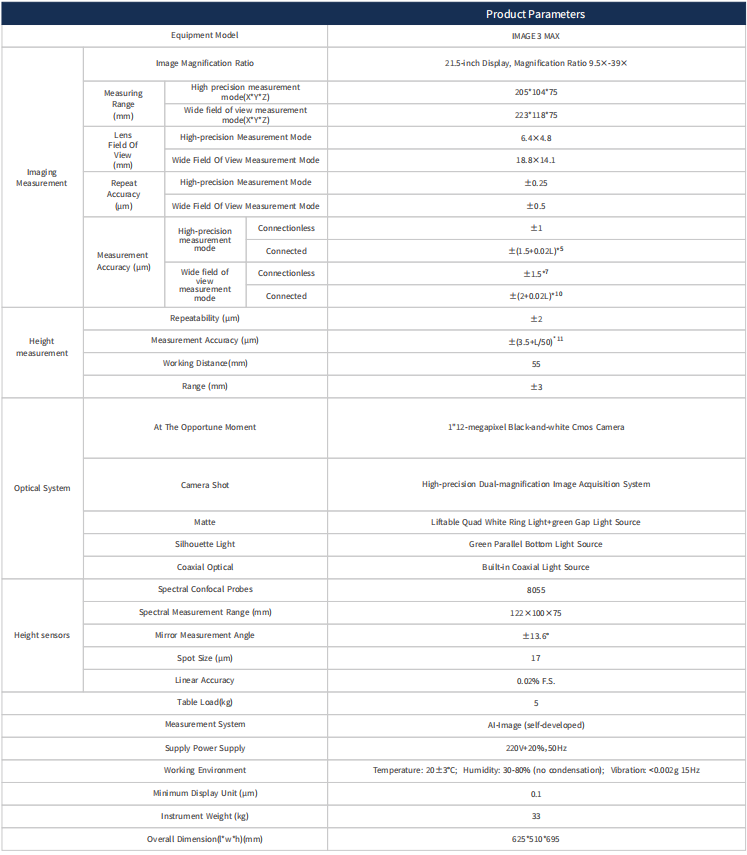

    IMAGE3 MAX  Image Measuring Instrument  Parameter

    ——
