Advantages of Machineries Vision|Line Scan Lens in PCB Defect Detection





Detection needs:

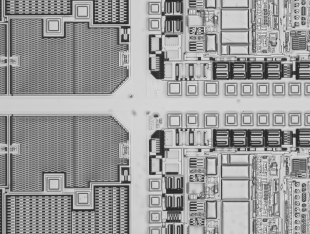

Quickly and efficiently identify defects such as lack of solder, whitening, black spots, etc. on PCB boards.


PCB board defect detection is an important element in the electronics industry, the traditional manual detection method requires a lot of manpower and time, and it is difficult to ensure the accuracy and efficiency of detection.



Machine vision technology can achieve automated production and comprehensive coverage of inspection, greatly reducing manpower and time costs, and can significantly improve the accuracy and efficiency of inspection. At the same time, machine vision technology can also monitor and statistically analyse the production process in real time, facilitating production management and quality control.


Core Components:

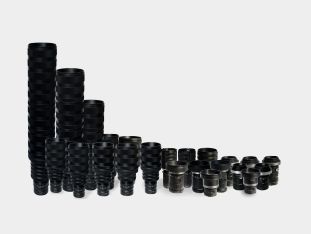

Line Scan Industrial Lens

Line scanning lens is a kind of industrial lens for efficient inspection, with advantages of high speed and high accuracy, it can acquire and identify the comprehensive image of PCB board in a short time, with micron-level detection accuracy, it can accurately detect the defects of PCB board such as over-hole, poor soldering, misalignment, loosening and so on.


POMEAS Line scan industrial lenses are available in a wide range of models and can be adapted to different types of PCB inspection applications to achieve individual inspection needs.


Machine vision technology equipped with line scanning lens has great advantages and application prospects in detecting PCB board defects. With the continuous development and breakthrough of machine vision technology, it is believed that it will play an increasingly important role in the field of PCB board manufacturing and promote the transformation, upgrading and development of the manufacturing industry.
