Measurement Systems|Image Gauge Applications for Plastic Part Dimensioning




Plastic parts are an important part of modern industry and consumer products, and their dimensional accuracy has a significant impact on product performance, reliability and safety. By measuring the dimensions of plastic parts, it is possible to ensure that they meet the design requirements and specifications, thus safeguarding the quality and performance of the product.



Measurement needs:

Inspection of plastic parts length, width, margin, hole diameter, hole spacing and other dimensions.



Measurement programme:


Dimensional measurements of plastic parts need to be accurate and efficient. The image measuring instrument meets this need and enables fast and accurate dimensional measurement of housings.



Detection effect diagram:

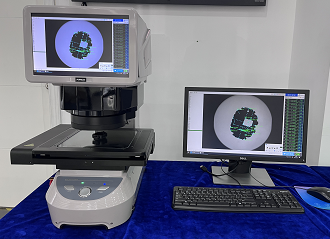

The POMEAS Image Dimensioner is a dimensional measurement system based on machine vision technology, which can be used to measure the dimensions of plastic parts of various shapes. The Image Dimensioner offers the following advantages over conventional measurement methods:



1. Non-contact measurement: The image measuring instrument adopts non-contact measurement method, which can complete the measurement without touching the workpiece, thus avoiding the damage to the workpiece and the error of measurement accuracy of the traditional contact measurement method.



2. High-precision measurement: The image measuring instrument adopts high-resolution camera and low distortion telecentric industrial lens, which can achieve micron-level precision measurement and is more accurate than the traditional measurement methods.



3. Automated measurement: Image measuring instrument adopts automated measurement technology, which can reduce the error brought by manual operation and improve the measurement efficiency and accuracy.



4. Multiple Measurement Functions: The image measuring instrument can achieve a variety of measurement functions, such as length, angle, roundness, aperture, etc., applicable to a variety of different types of plastic parts measurement.
