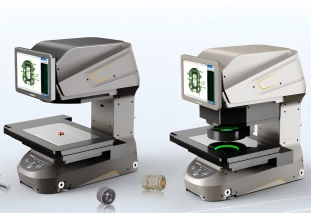

In the precision fields of industrial manufacturing and quality control, the accuracy and efficiency of measurement technology directly impact product quality and production efficiency. As a high-precision measuring instrument that integrates optical, electronic, and computer technologies, the flash measurement system has become an indispensable inspection tool across numerous industries thanks to its significant advantages, including non-contact measurement, rapid response, and high automation. It not only significantly improves measurement efficiency but also meets complex and ever-changing industrial inspection requirements while ensuring measurement accuracy.

However, for many people who are new to flash testers or are not very familiar with their capabilities, a common question is: exactly which parameters can a flash tester measure? This article will delve into this question and shed light on the measurement capabilities of flash testers.

1. Dimensions

Length, Width, Height: The flash gauge can accurately measure the three-dimensional dimensions of objects, making it suitable for dimensional inspection of various components.

Area: By measuring the length and width of an object, its area can be calculated, making it suitable for measuring flat materials.

2. Angle Parameters

Tilt angle, rotation angle: The flash gauge can measure the angles of an object’s surface or edges to ensure that the product’s angular accuracy meets design specifications.

3. Shape Parameters

Contour, Roundness, and Straightness: The flash measurement instrument captures an object’s contour information and analyzes its geometric features—such as roundness and straightness—to detect deviations in shape. Geometric Tolerances: These include flatness, perpendicularity, and parallelism. The flash measurement instrument can precisely measure these geometric tolerances to ensure the geometric accuracy of products.

4. Flatness Parameters

Surface Flatness: Using non-contact measurement technology, the flash tester can assess the flatness of an object’s surface and is suitable for inspecting the flatness of flat materials.

5. Diameter and Radius Parameters

Diameter of circular holes and cylinders: The flash gauge can accurately measure the diameter of circular holes or cylinders, as well as their corresponding radii, making it suitable for inspecting components such as pipes and bearings.
