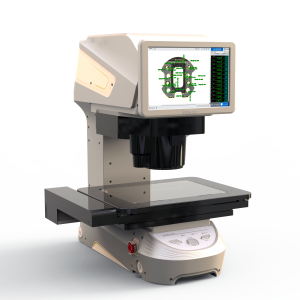

The primary function of a ZOOM LENS in an image measuring instrument is to enable users to flexibly accommodate target objects of varying sizes by continuously adjusting the magnification in real time, thereby facilitating precise observation and measurement ranging from macro-level positioning to micro-level details. Its core value lies in seamlessly integrating “zoom observation” with “precision measurement,” eliminating the cumbersome procedures and potential errors associated with changing lenses.

Specifically, this feature is evident in the following key applications:

1. Maintain clear images throughout and enable quick zoom level switching

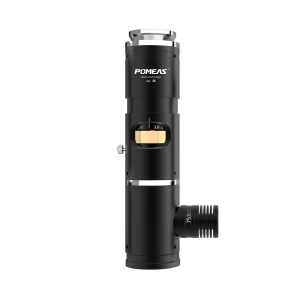

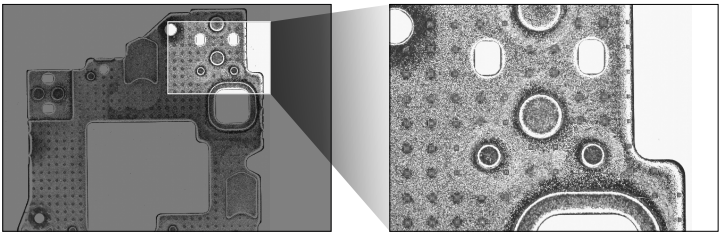

High-quality ZOOM LENSes typically feature a parfocal design, which minimizes focus shift during magnification changes, allowing the image to remain sharp without the need for refocusing. This enables users to seamlessly switch from a low-magnification overview to high-magnification close-ups of fine details, significantly improving inspection efficiency.

2. Seamlessly adapts to a wide range of measurement needs

Whether inspecting the contours of large workpieces or precisely measuring the line widths and spacings of microelectronic components, you can quickly achieve the optimal magnification at a single workstation simply by rotating the ZOOM LENS or using motorized controls. This flexibility fundamentally addresses the pain point associated with traditional fixed-magnification ZOOM LENSes, which require frequent replacement due to their fixed field of view and resolution.

3. Improving measurement accuracy and operational consistency

Continuous zoom combined with high-precision calibration ensures accurate geometric measurements at all magnifications. Operators do not need to recalibrate the system when changing lenses, which reduces human error and ensures the repeatability and reliability of measurement results.
