Vision Solution for Damage Detection of Solar Panels

share:

2021/03/08

author:POMEAS



(1)Programme Background

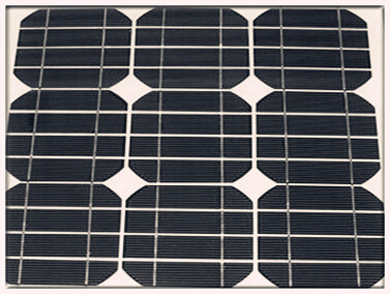

Solar panels as the most basic unit of new energy photoelectric conversion, more and more attention and utilization.  So, in the production process, how to reduce the damage rate of solar panels and the use of silicon materials, improve the yield of finished products and finished grade, become the first heavy task. At present, if the machine vision optical system can be introduced, it is easy to solve this big problem.







(2)Vision Solution for Damage Detection of Solar Panels
 POMEAS 1 MP FA LENS PMS-7528M
 POMEAS Gigabit COUNT CCD FA LENS

Industrial control computer: i5CPU 4G memory

 Machine vision inspection software system based on pome independent development

 Preparation: a suitable machine vision inspection solution can be configured according to the actual environment




(3)Detection content

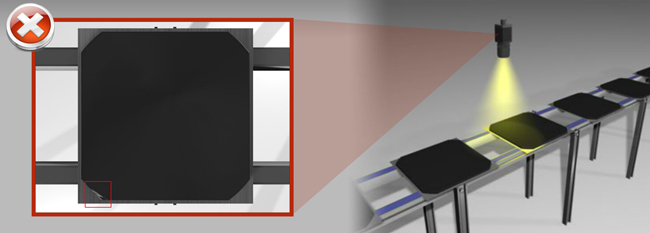

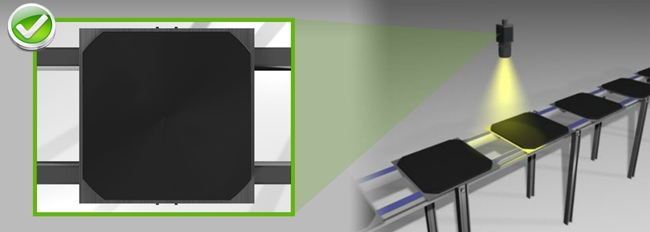

 Detect whether the edge of the solar cell plate is damaged or broken







(4)Detection method

 The machine vision method is used to detect the breakage and crack by the template matching and the difference image method.









TECHNICAL SOLUTION
