Background of the Proposal:

The client is an eyewear manufacturer whose factory produces a wide variety of frames. To ensure that every pair of glasses is dimensionally accurate and fits comfortably, the company must produce a large number of high-precision molds. The consistency in the precision of these molds directly affects the quality of the frame components. Therefore, the CNC mold machining shop must conduct rigorous daily inspections on molds of various specifications.

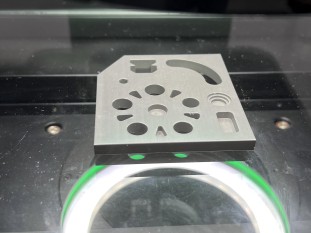

(The product shown is not the actual sample; the sample is a confidential product)

Challenges of the Plan

The molds produced in the workshop are mostly one-off items and come in a wide variety. Traditional inspection methods relying on 2D imaging systems are inefficient and slow, making it difficult to meet the demands of large-scale production. The customer is looking to introduce equipment that allows for rapid programming, offers high inspection efficiency, and meets the required measurement accuracy.

Solution

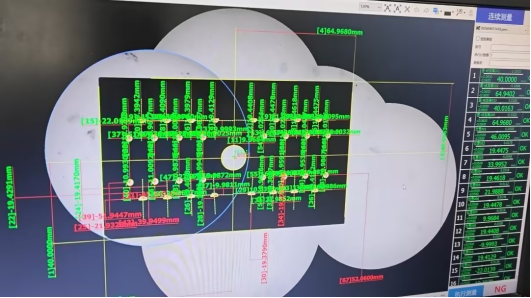

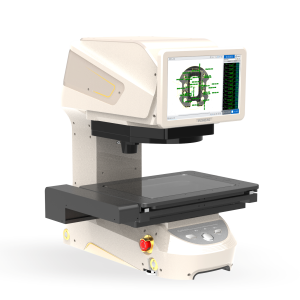

To meet the customer’s needs, we recommended the POMEAS IMAGE3 PRO-H image dimension measuring system, which utilizes its stitching measurement capability. Operators simply place the frame on the measuring platform and press a button to quickly measure key dimensional data—such as rectangular and circular holes, as well as positional accuracy—with precision down to the micron level.

Advantages of the Solution

• Wide measurement range; the stage measures 300 × 200 × 75 mm, and the lens mount can be placed anywhere for one-click measurement.

• Easy to operate; simply follow the instructions to program the system—it’s easy to learn and use, lowering the learning curve.

• Fast measurement speed; no fixtures required, and no need to position the object or origin. The system identifies all measurement points in a single step before performing the measurement.

• Equipped with a high-precision spectral sensor, it can measure step heights and vertical dimensions, meeting diverse inspection needs.

• Accurate measurements with automatic identification of measurement points, ensuring consistent results every time.

Test Results (Eyeglass Frame Molds)

By comparing the measurement times of the one-click measuring instrument with those of the customer’s existing on-site equipment, we found that the IMAGE3 PRO-H significantly improved inspection efficiency. Additionally, the device’s accuracy and stability were thoroughly validated through repeatability testing, which involved taking 10 measurements with the product stationary and another 10 measurements after repeatedly repositioning the product. The results fully met the customer’s high-precision inspection requirements.
