Color Spectral Confocal Displacement Sensor

Spectral Focus Thickness Measurement System

Change different probes according to product size and accuracy requirements, easy to integrate in measurement applications in various industries.Non-contact and quick measurement of thickness, realti

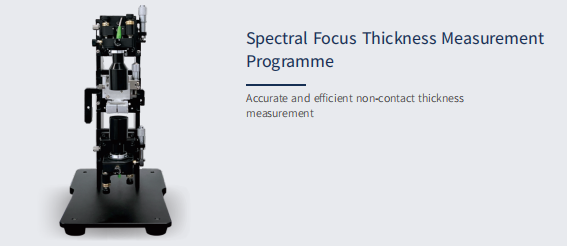

Spectral Focus Thickness Measurement System

Download now

Product Description

————

Dual spectrum is more accurate than unidirectional measurement.Stable measurement of all kinds of materials, lightweight probe structure, easy to integrate into the automated measurement applications of various industries.

Product Advantage

————

1.Stable measurement of all kinds of materials, such as metal/ ceramics/mirror/glass, etc.

2.Non-contact and quick measurement of thickness, real-time output of measurement results when the product is placed.

3.Strong stability, high temperature and high pressure and other harsh operating conditions can also be used normally.

4.Change different probes according to product size and accuracy requirements, easy to integrate in measurement applications in various industries.

Application Area

————

◆Mobile phone, tablet, computer and other metal casing manufacturing industry

◆ PCB boards, connectors, IC chips and other electronics

◆ Panel, glass, tempered film and other industry

◆ Semiconductor wafer, green energy, photovoltaic and other industry
