Laser Profile Sensor for Hardware Mold Angle Measurement




Laser profile sensor is a high-precision, high-speed 3D measurement technology that has been widely used in industrial automation, robot navigation, machine vision and other fields.



With the continuous development of industry, hardware molds are more and more widely used in various fields.Hardware mold is an indispensable part of the manufacturing process, and its precision and quality directly affect the product yield and appearance quality.The measurement of the angle of the hardware mold is one of the important means to ensure the precision and quality of mold processing.


The traditional method of measuring the angle of hardware molds is mainly to use calipers, angle rulers and other manual measuring tools for measurement.This method is simple and easy to use, but there are problems such as cumbersome operation and low measurement accuracy.Laser profile sensors, on the other hand, are a new type of measurement tool that uses the laser triangular reflection principle to quickly and accurately measure the angle of hardware molds and have many advantages.


The laser profile sensor is non-contact measurement that does not require direct contact with the product, thus avoiding errors that can be introduced by mechanical measuring instruments.Secondly, with high measurement accuracy and repeatability, the laser profile sensor can quickly and accurately measure the angle of hardware molds, and can complete a large number of measurement tasks in a short period of time, which improves the measurement efficiency.



Laser profile sensors can also realize automated measurement, through the linkage with the computer system, to realize a series of work such as data acquisition, processing, analysis, etc., which improves the measurement accuracy and efficiency.


In conclusion, the application of laser profile sensors in the angle measurement of hardware molds has irreplaceable advantages.It enables fast, accurate, safe and automated measurements, which improves the efficiency and quality of work and makes an important contribution to the development of related fields.



You may also be interested in the following information


  • Download now

    APO laser auto-focus module --motor

  • Download now


  • Download now

    Spectral Focus Thickness Measurement System

  • Download now

    Spectral Confocal Displacement Sensor

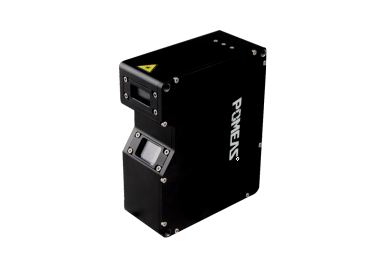

    Laser Profile Sensor
